Chibery 165° Soft Close Corner Hinges for Face Frame & Lazy Susan

Product Specifications

Specification	Details
Brand	Chibery
Product Type	Corner Cabinet Hinge
Hinge Style	Concealed Corner Cabinet Hinge
Cabinet Type	Compatible Face Frame Cabinets
Opening Angle	165°
Closing Type	Soft Close
Adjustment	3D Adjustable
Adjustment Directions	Height, Depth, Overlay
Damper	POM
Door Thickness	18–22 mm
Cup Diameter	35 mm (1-3/8")
Cup Depth	11.5 mm
Screw-Hole Distance	45 mm
Mounting Plate	Clip-On
Material	Cold-Rolled Steel
Surface Finish	Nickel-Plated
Base Finish	Copper-Plated
Package Quantity	2 Hinges
Included Hardware	Dowels + Self-Tapping Screws

Make corner cabinet storage easier to access with Chibery 165° soft close corner cabinet hinges, designed for compatible face frame corner cabinet applications.

The wide 165° opening angle allows the cabinet door to swing farther than many standard cabinet hinges, helping improve access to hard-to-reach corner storage areas. This makes the hinges suitable for compatible blind corner cabinets, corner storage cabinets, and certain Lazy Susan cabinet configurations.

A built-in POM soft-close damper helps slow the door during closing for smoother and quieter operation. The 3D adjustment system allows you to fine-tune the door in three directions—height, depth, and overlay—using a standard screwdriver.

The clip-on mounting plate simplifies installation and removal, while the included dowels and self-tapping screws provide the basic hardware needed for installation.

Each package contains 2 cabinet hinges.

Key Features

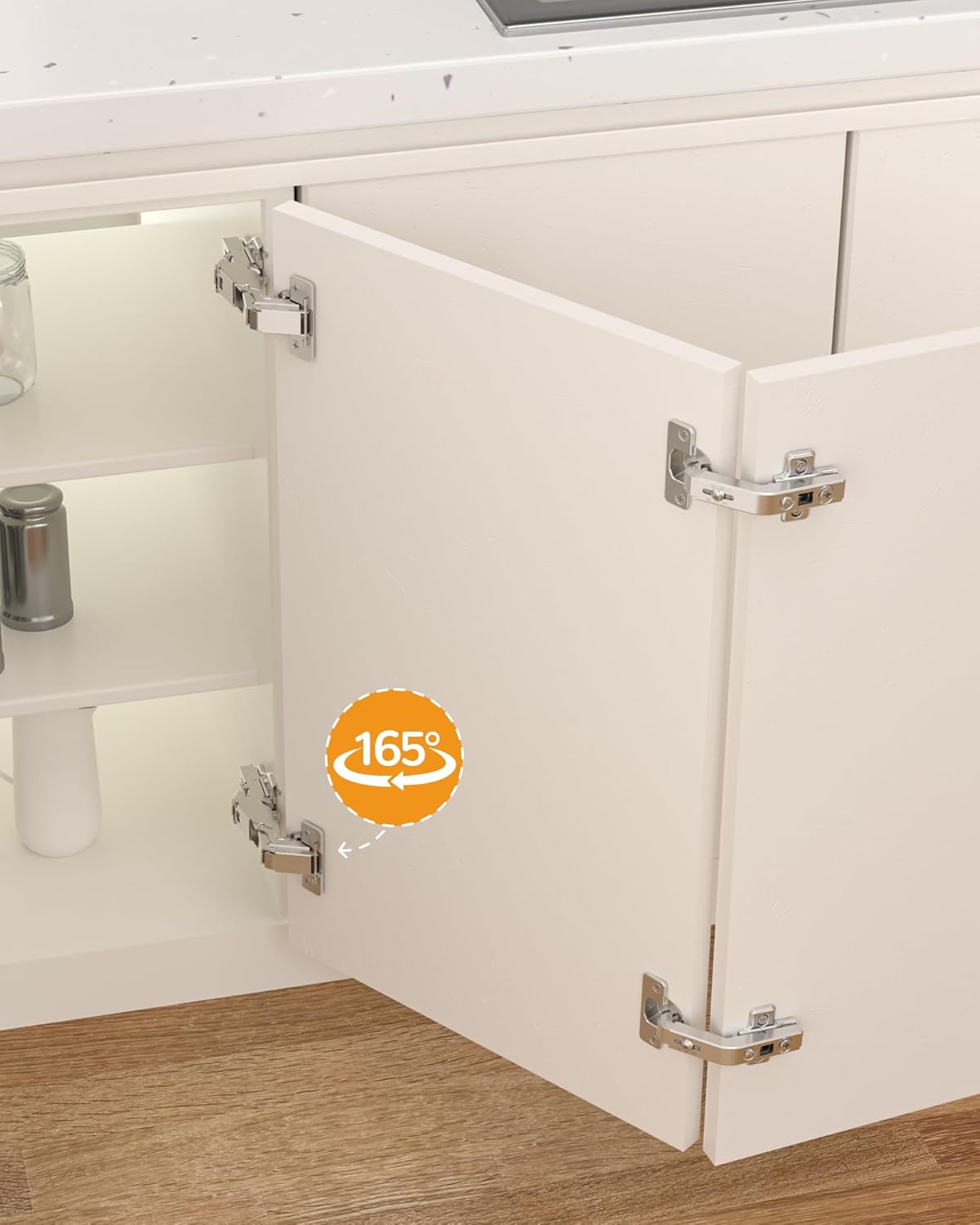

165° Wide Opening for Corner Cabinet Access

These 165 degree cabinet hinges are designed to provide a wide opening angle of approximately 165°.

The wider opening can make it easier to access items stored in corner cabinet spaces, particularly where a standard hinge opening may limit access.

They are suitable for compatible:

• Corner cabinets
• Blind corner cabinets
• Corner storage units
• Certain Lazy Susan cabinet configurations
• Kitchen corner cabinets

Actual accessibility depends on cabinet construction, door position, and surrounding cabinet layout.

Soft Close with POM Damper

The integrated POM damping mechanism helps slow the cabinet door during closing.

The soft-close function helps reduce slamming and operating noise while providing a smoother closing motion.

A smaller soft-close engagement angle also helps begin the damping action before the door reaches the fully closed position.

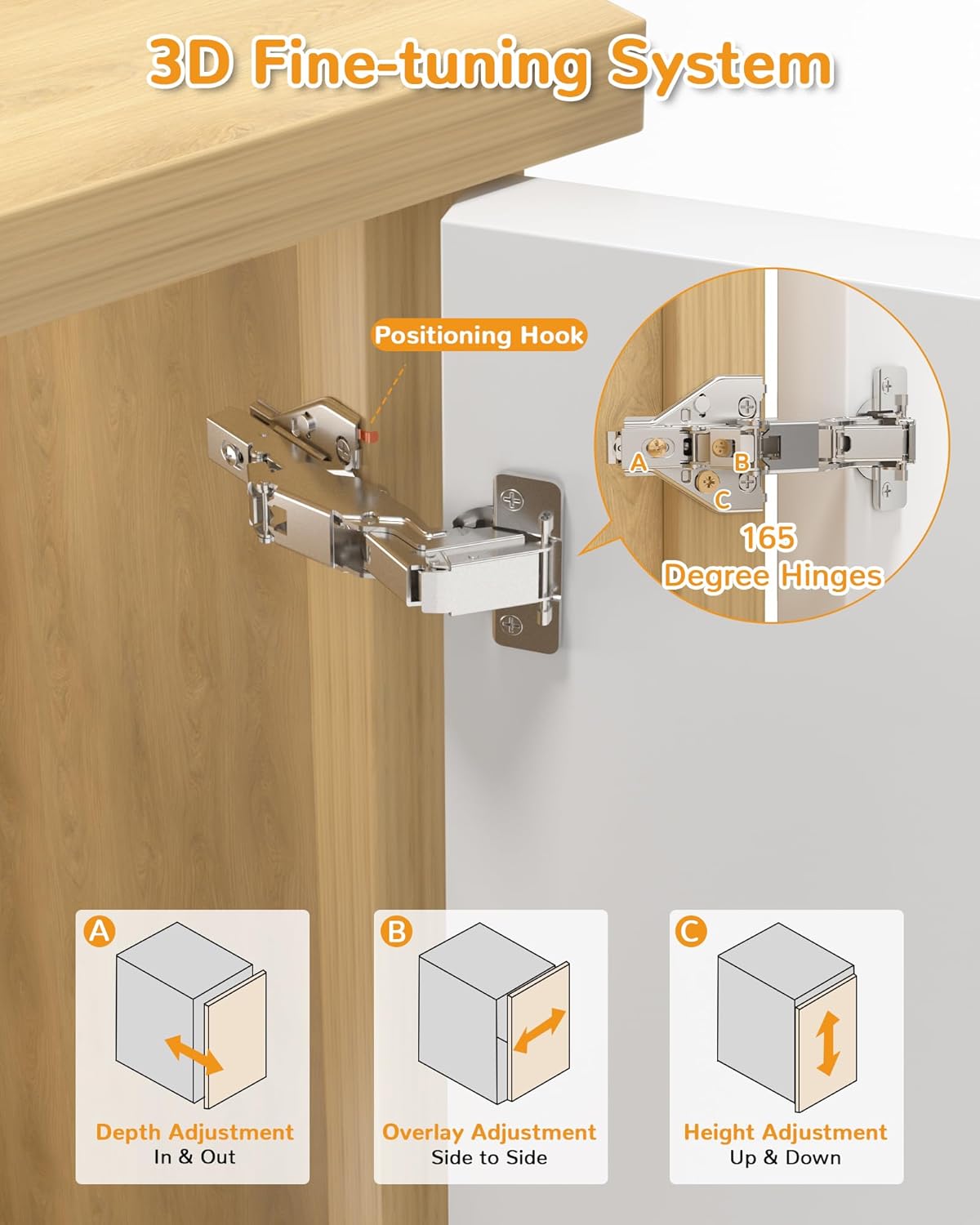

3D Adjustment for Precise Door Alignment

The 3D adjustment system allows the cabinet door to be fine-tuned in three directions:

• Height adjustment – move the door up or down
• Depth adjustment – move the door inward or outward
• Overlay adjustment – adjust the door side-to-side

These adjustments help correct minor alignment differences and create a more consistent appearance between adjacent cabinet doors.

Adjustment can be performed with a standard screwdriver.

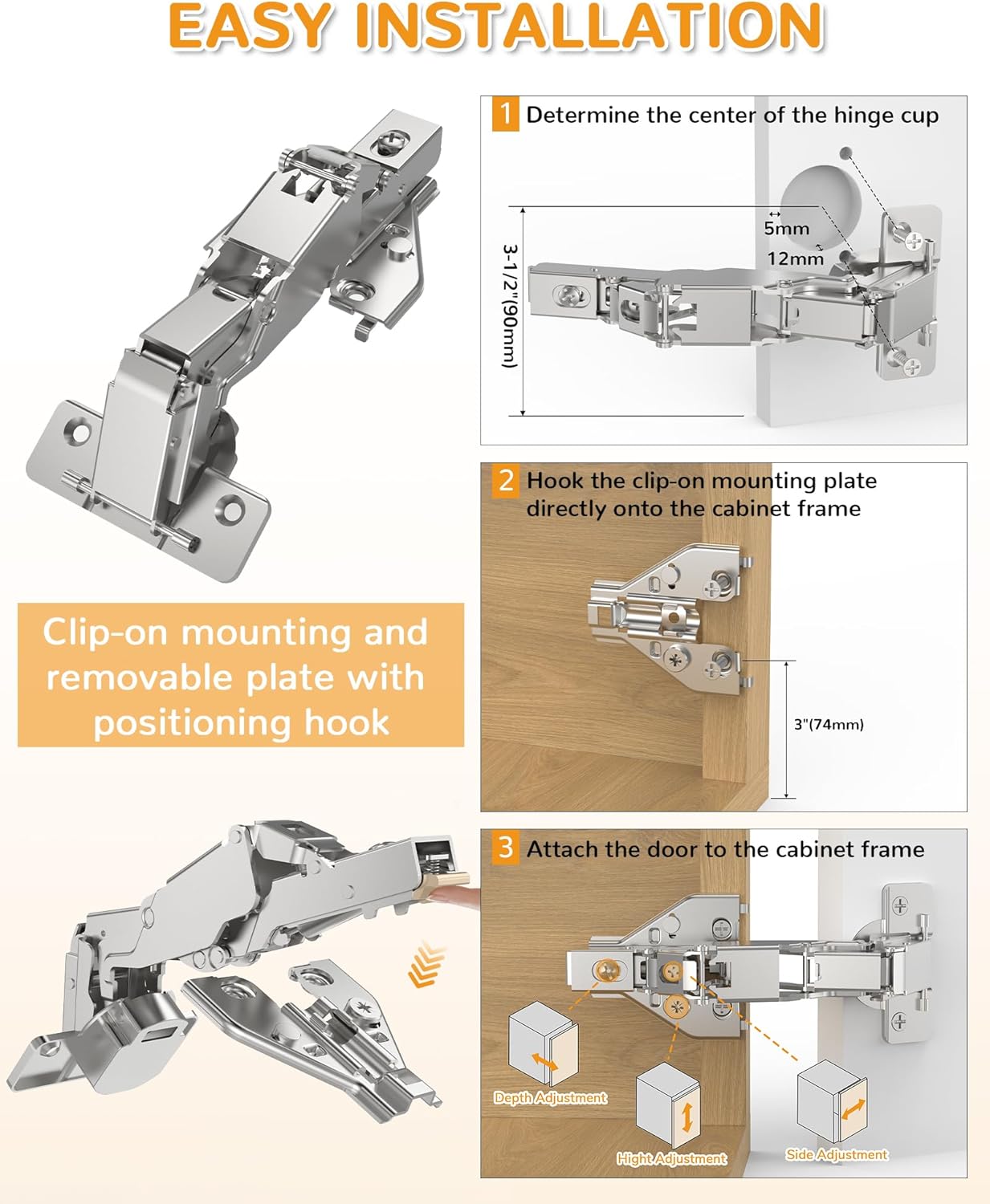

Clip-On Mounting Plate

The clip-on mounting plate allows the cabinet door and hinge assembly to be connected and removed more conveniently.

This can simplify installation, adjustment, and future cabinet-door removal compared with fixed mounting configurations.

Designed for Face Frame Corner Cabinets

These hinges are designed for compatible face frame cabinet applications.

They are particularly suited to corner cabinet configurations where a wider door opening is desired for improved interior access.

Check your existing hinge configuration and cabinet dimensions before ordering to confirm compatibility.

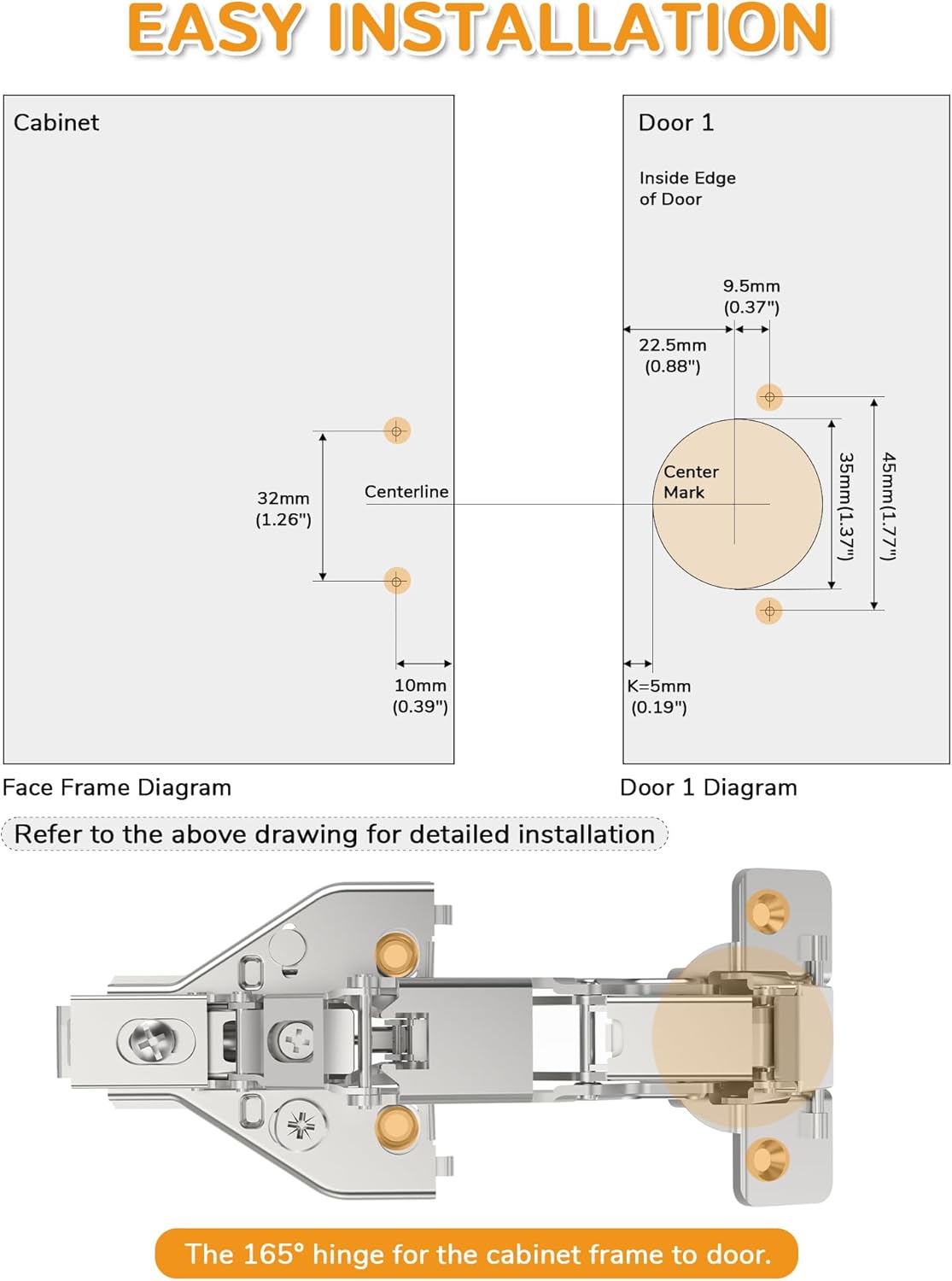

18–22 mm Cabinet Door Compatibility

The hinges are designed for compatible cabinet doors measuring:

18–22 mm thick

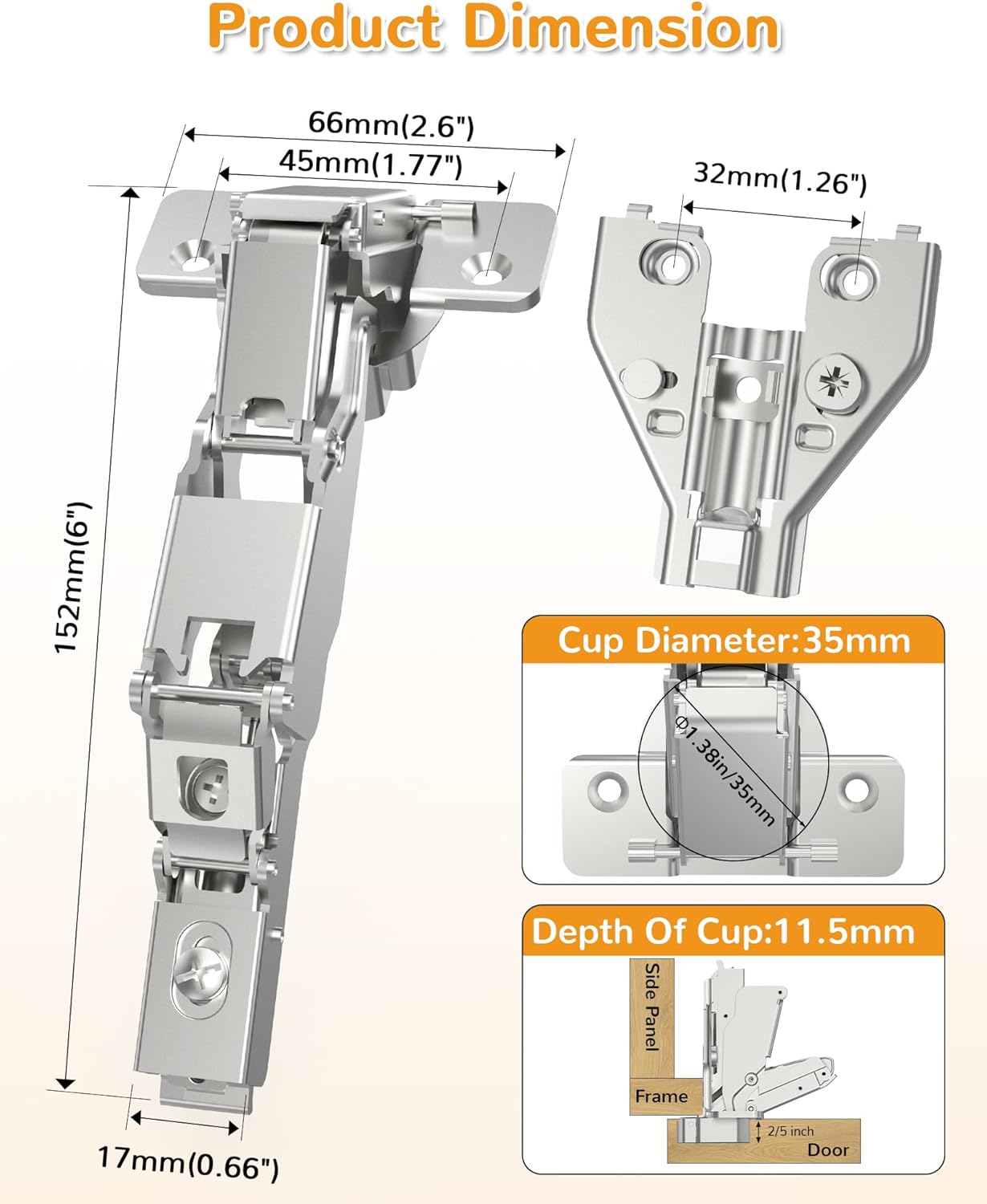

The specified hinge cup dimensions are:

35 mm cup diameter
11.5 mm cup depth

The specified screw-hole distance is:

45 mm

Always compare these dimensions with your existing cabinet hinge before purchasing.

Compatible Applications

These corner cabinet hinges are suitable for compatible:

• Kitchen corner cabinets
• Blind corner cabinets
• Face frame corner cabinets
• Corner storage cabinets
• Compatible Lazy Susan cabinet applications
• Custom cabinetry
• Cabinet renovation projects
• Cabinet hinge replacement projects

The cabinet construction, door dimensions, hinge cup dimensions, and mounting position must be compatible with the hinge.

How to Choose the Right Corner Cabinet Hinge

Before ordering, check the following measurements:

1. Cabinet Construction

Confirm that your cabinet uses a compatible face frame configuration.

2. Door Thickness

Check that the cabinet door is between:

18–22 mm thick

3. Hinge Cup Diameter

The hinge requires a:

35 mm cup diameter

4. Cup Depth

The specified cup depth is:

11.5 mm

5. Screw-Hole Distance

The specified screw-hole spacing is:

45 mm

6. Opening Requirements

Consider whether your cabinet layout can benefit from the approximately 165° opening angle.

3D Hinge Adjustment

After installation, use a standard screwdriver to make small adjustments as needed.

Height

Adjust the cabinet door upward or downward to align it with adjacent doors.

Depth

Move the door inward or outward to improve the relationship between the door and cabinet frame.

Overlay

Adjust the door side-to-side to improve the overlay and spacing between cabinet doors.

Make small adjustments and check the door alignment after each adjustment.

Before You Order

Please confirm:

1. Cabinet type
Designed for compatible face frame corner cabinets.

2. Door thickness
18–22 mm.

3. Cup diameter
35 mm.

4. Cup depth
11.5 mm.

5. Screw-hole distance
45 mm.

6. Existing hinge configuration
For replacement projects, compare your current hinge dimensions and mounting position before ordering.

7. Opening requirements
Make sure the cabinet layout allows the intended 165° door movement without interference.

Frequently Asked Questions

What are 165 degree cabinet hinges?

165 degree cabinet hinges are designed to allow a cabinet door to open to approximately 165°, providing a wider opening range than many standard cabinet hinges.

What are corner cabinet hinges used for?

Corner cabinet hinges are used on compatible corner cabinet doors where a wider opening can improve access to storage areas.

Are these soft close corner cabinet hinges?

Yes. The integrated POM damper helps slow the cabinet door during closing for smoother and quieter operation.

Can these hinges open to 165°?

Yes. The hinge is designed for an opening angle of approximately 165°.

What does 3D adjustment mean?

The hinge provides three adjustment directions: height, depth, and overlay.

Are these hinges for face frame cabinets?

Yes. They are designed for compatible face frame corner cabinet applications.

Can these hinges be used for blind corner cabinets?

They can be used for compatible blind corner cabinet configurations where the hinge dimensions, door construction, and opening geometry are suitable.

Can these hinges be used on Lazy Susan cabinets?

They may be suitable for compatible Lazy Susan cabinet configurations. Because Lazy Susan cabinet designs vary, verify the existing hinge layout and dimensions before ordering.

What cabinet door thickness do these hinges fit?

They are designed for compatible cabinet doors measuring 18–22 mm thick.

What is the hinge cup diameter?

The specified cup diameter is 35 mm (1-3/8").

What is the cup depth?

The specified cup depth is 11.5 mm.

What is the screw-hole distance?

The specified screw-hole distance is 45 mm.

Does the hinge use a clip-on mounting plate?

Yes. The hinge uses a clip-on mounting configuration for compatible applications.

How many hinges are included?

This product is sold as a 2-pack, containing two cabinet hinges.

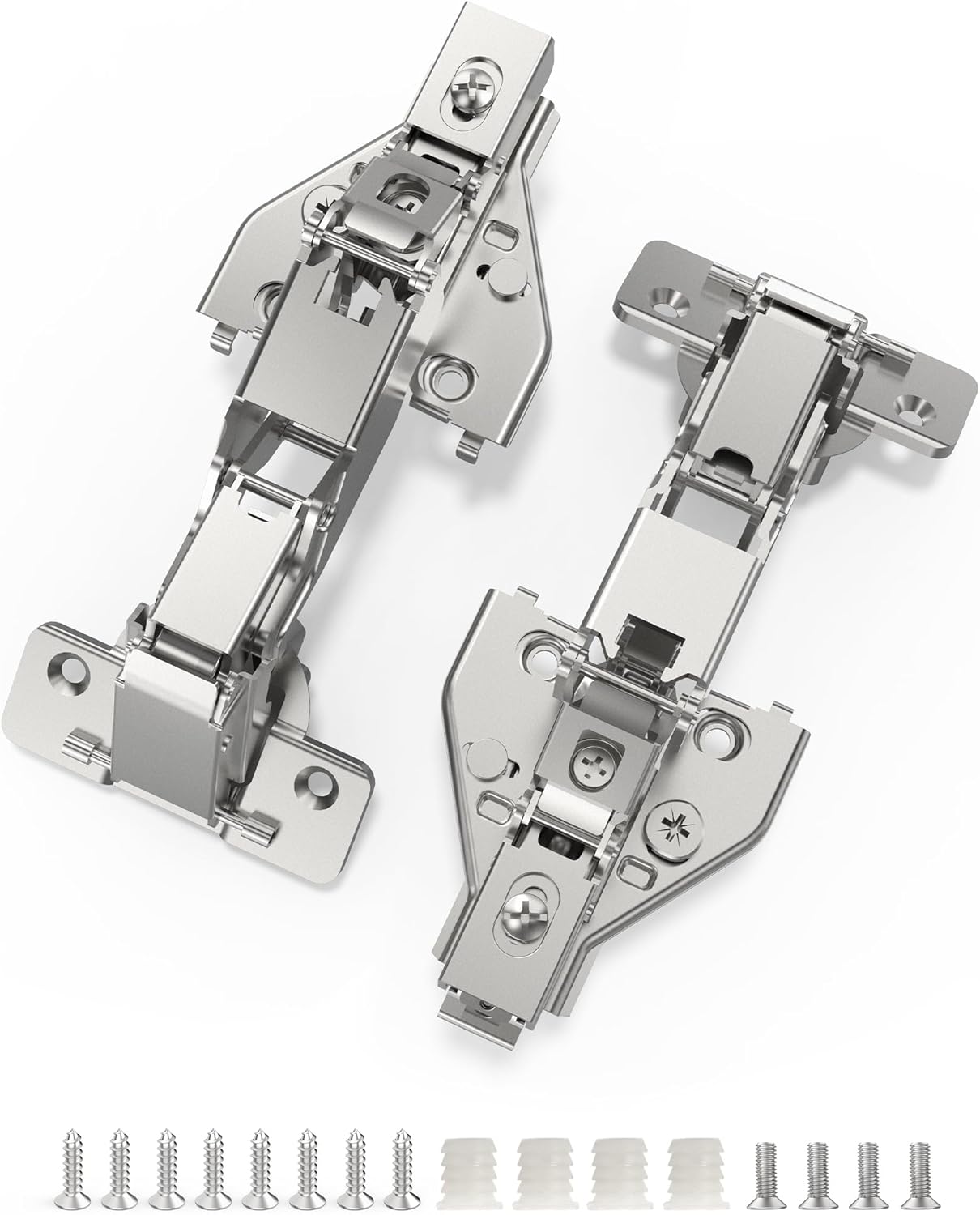

What hardware is included?

The listed package includes 4 easy-on dowels and 8 self-tapping screws, in addition to the two hinges.

Are these hinges suitable for kitchen corner cabinets?

Yes, for compatible face frame corner cabinet configurations.

Need Help Confirming Compatibility?

Before ordering, compare your existing hinge configuration, cabinet type, door thickness, cup diameter, cup depth, screw-hole spacing, and required opening angle.

For corner or Lazy Susan cabinets, cabinet geometry can vary significantly. Matching the existing hinge configuration is recommended for replacement projects.
