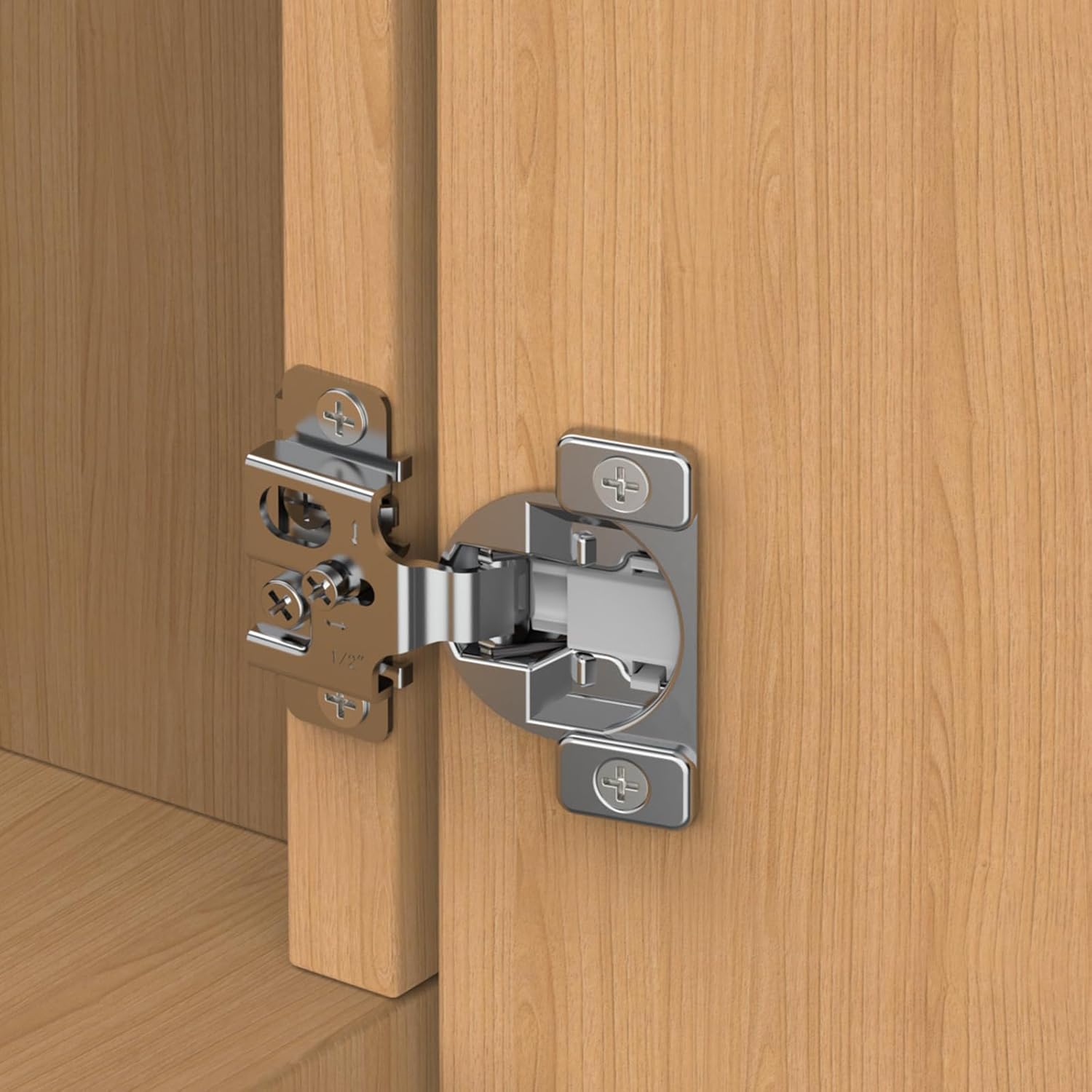

3D 105° Small Angle Slow Close Soft Close Concealed Hinge

About this item

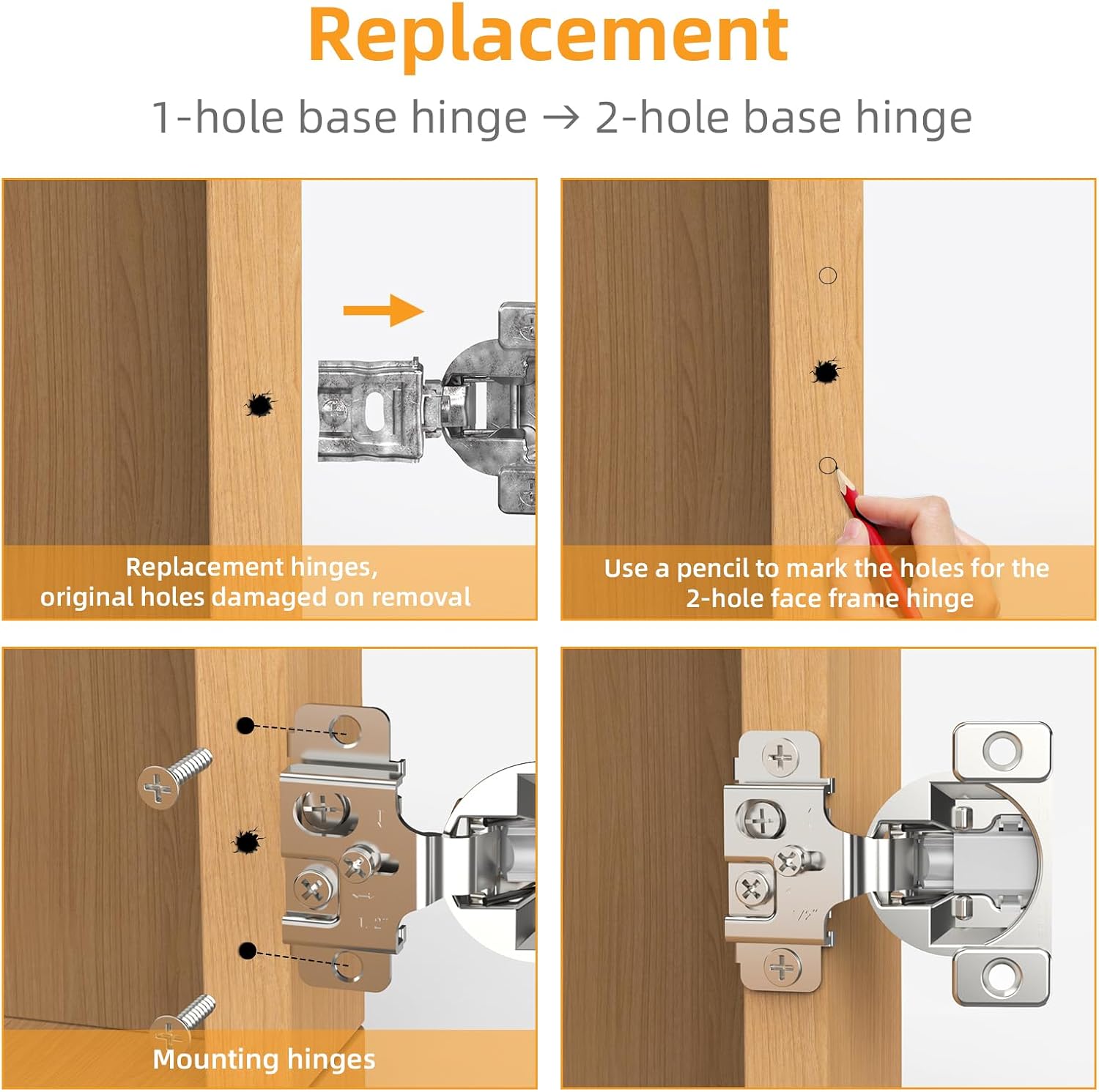

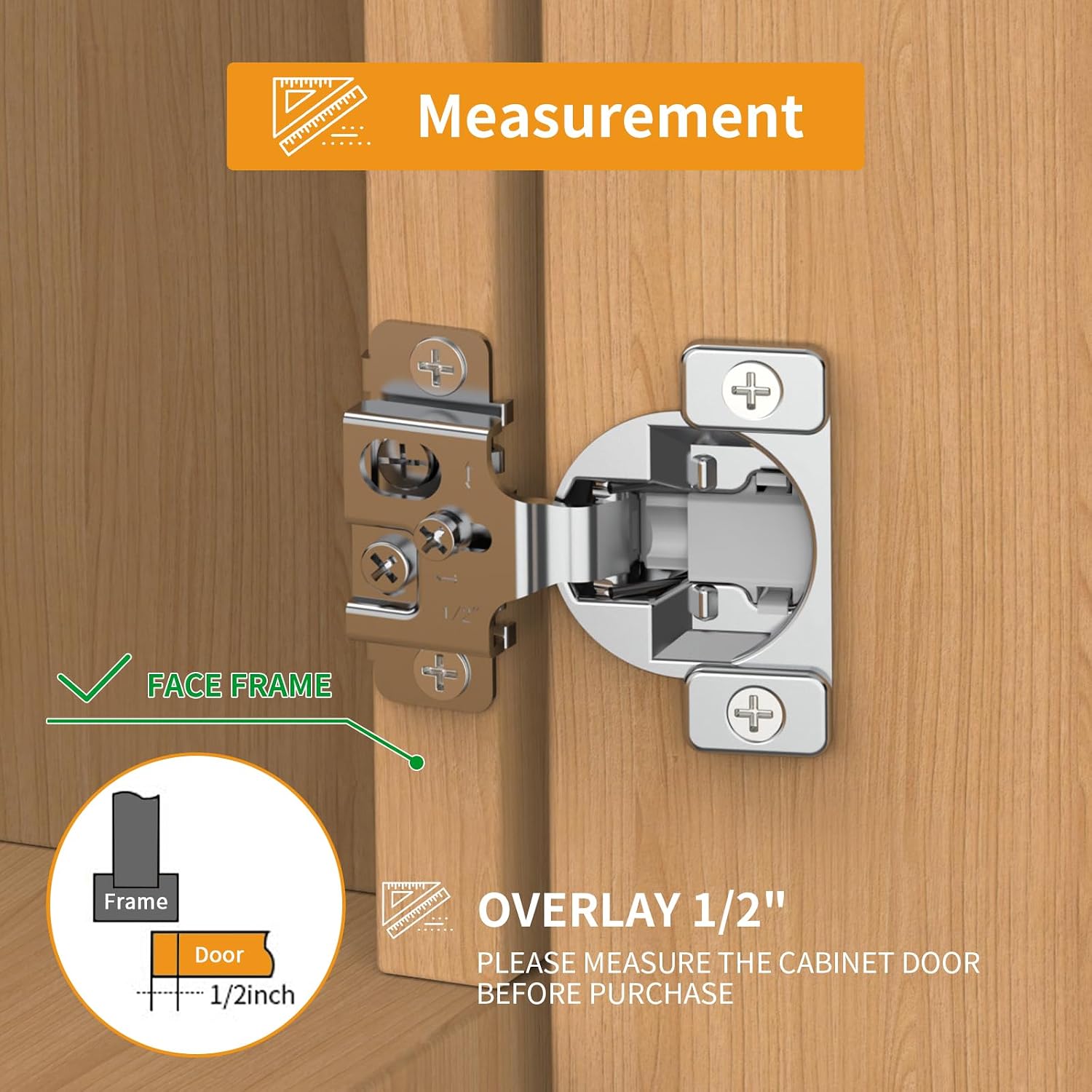

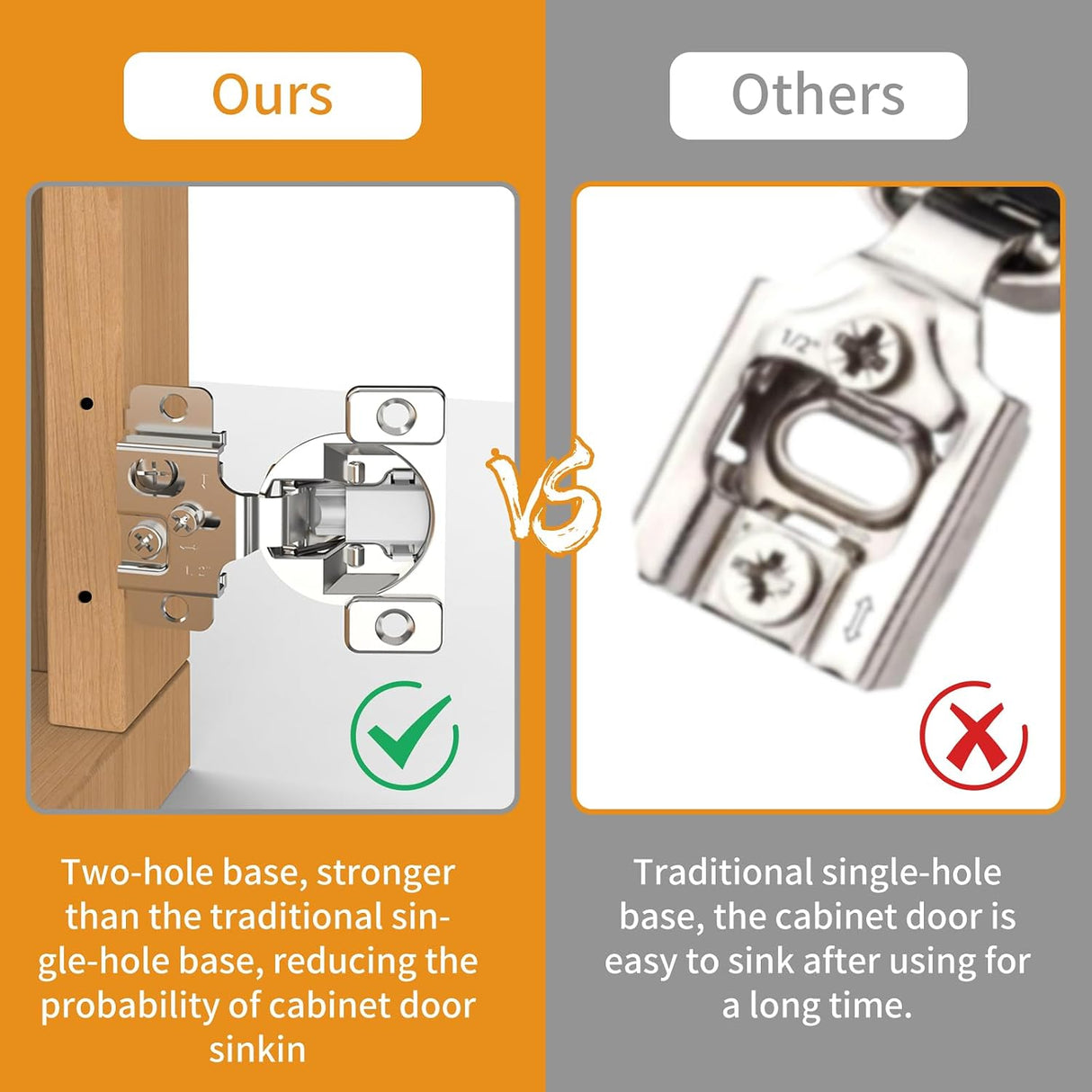

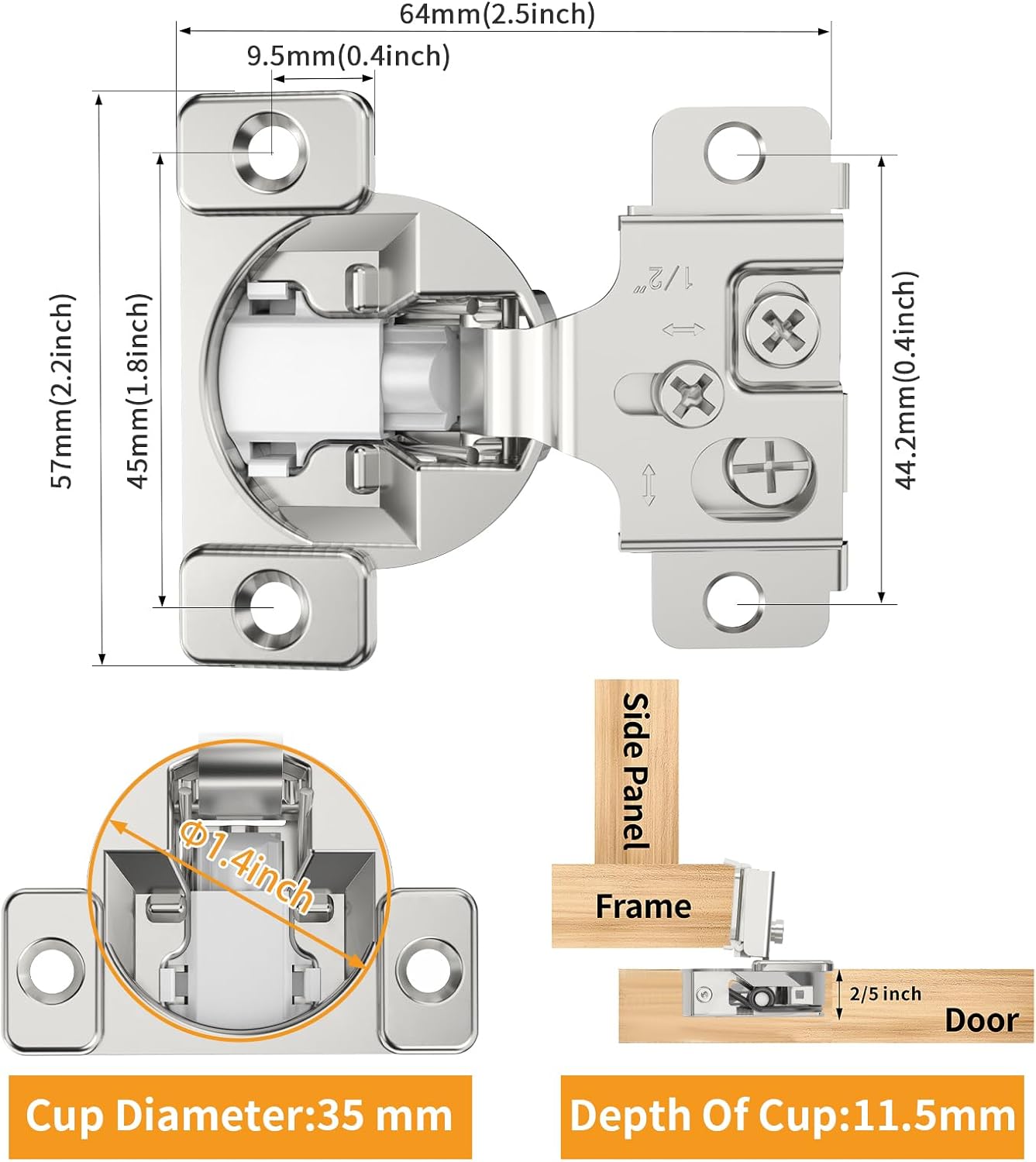

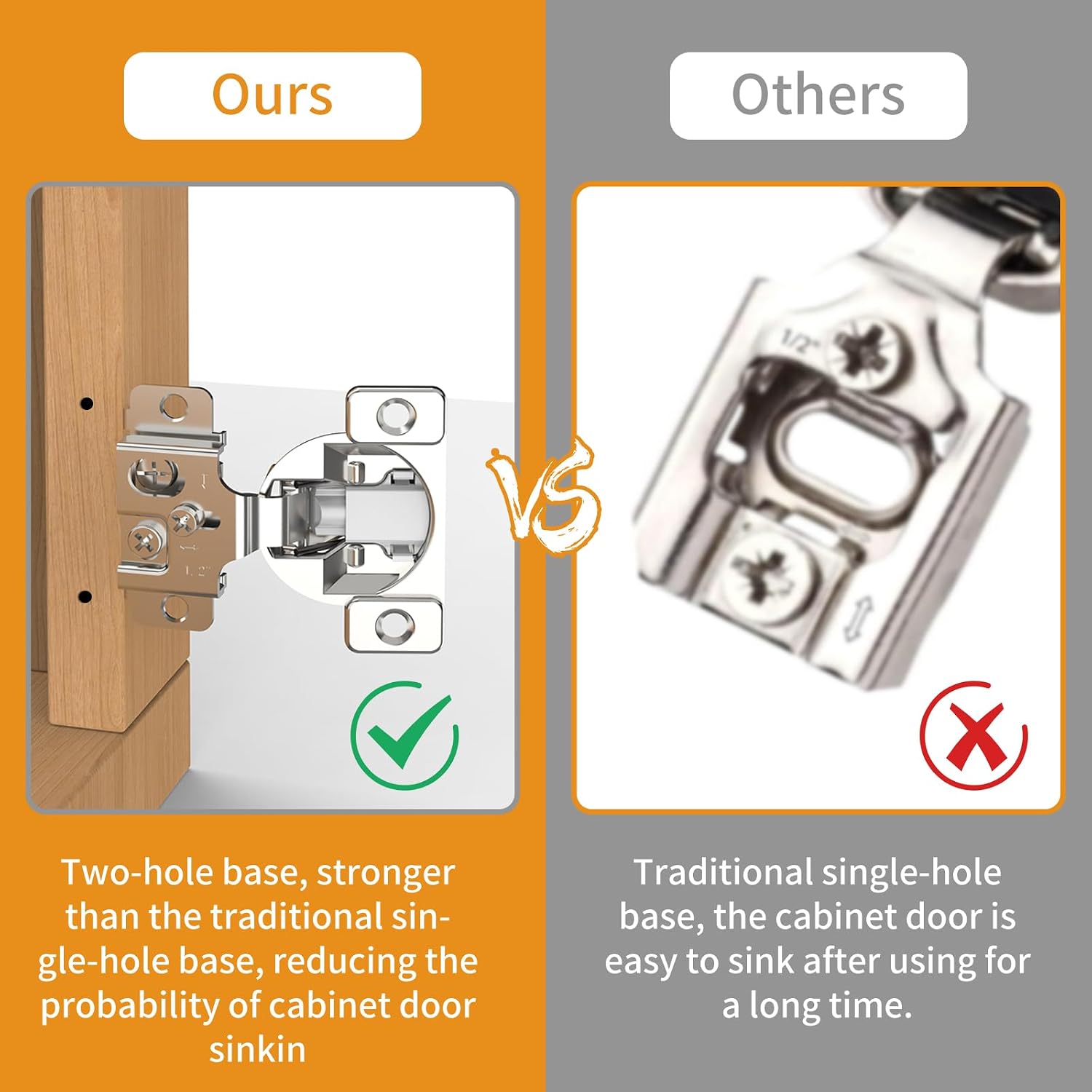

• Installation Specification: Cup diameter is 35mm; cup depth is 11.5mm; screw hole distance is 45mm; opening angle is 105 degrees, suitable for most cabinet door styles. Each soft close cabinet hinge comes with 2 easy-on dowels and 3 self-tapping wood screws for a secure and precise installation. Need to drill two additional holes (44.2mm hole distances) on the cabinet frame to replace old hinges that only have one hole. Please check compatibility before purchasing

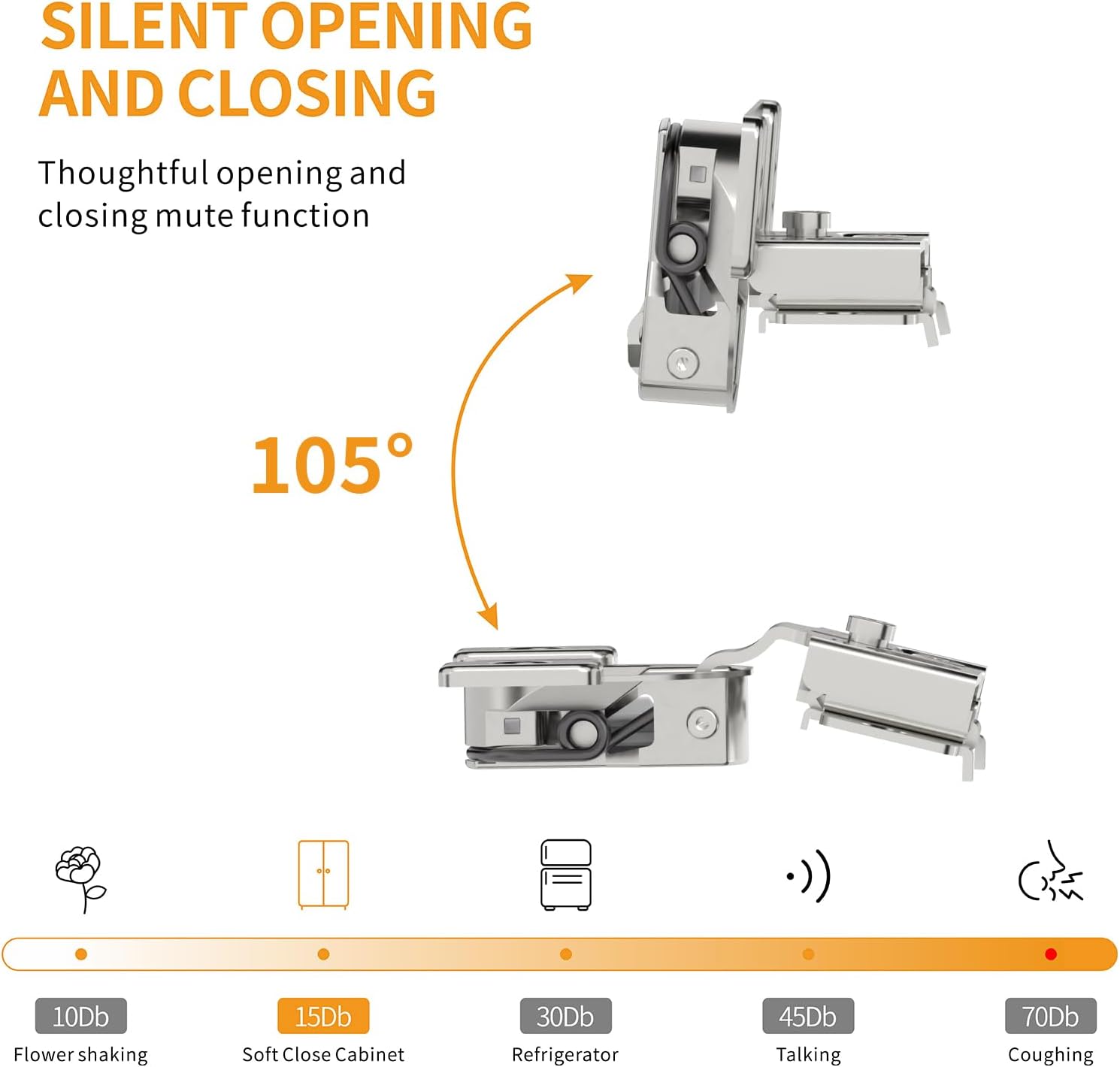

• SOFT CLOSE CABINET HINGE: Each overlay concealed cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports SMALL SOFT CLOSE ANGLE, which can better protect your finger

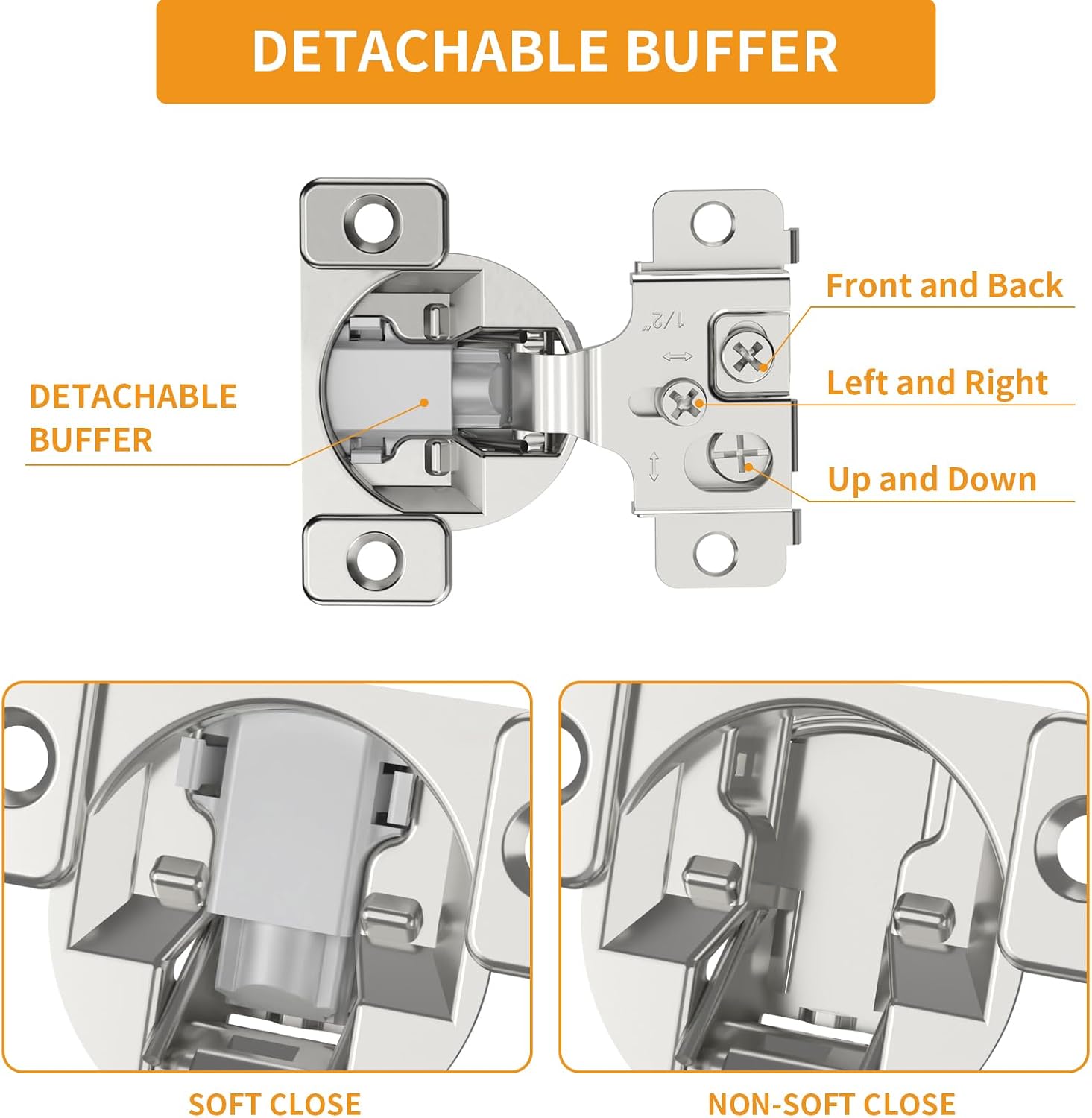

• 3 Ways Adjustable Upgrade: Superior 3D adjustability allows you to adjust the cabinet door up and down, left and right, back and forth just by turning a screwdriver, this will ensure that your bathroom and kitchen cabinet doors do not sag, and align correctly, open and close smoothly
• Double Electroplated: The material of our overlay cabinet hinges is high quality steel and nickel plated finish and brass plated bottom, durable and perfect for kitchen cabinet doors, wardrobes, and TV cabinets, bookcases, wine cabinets, and other luxury door connections

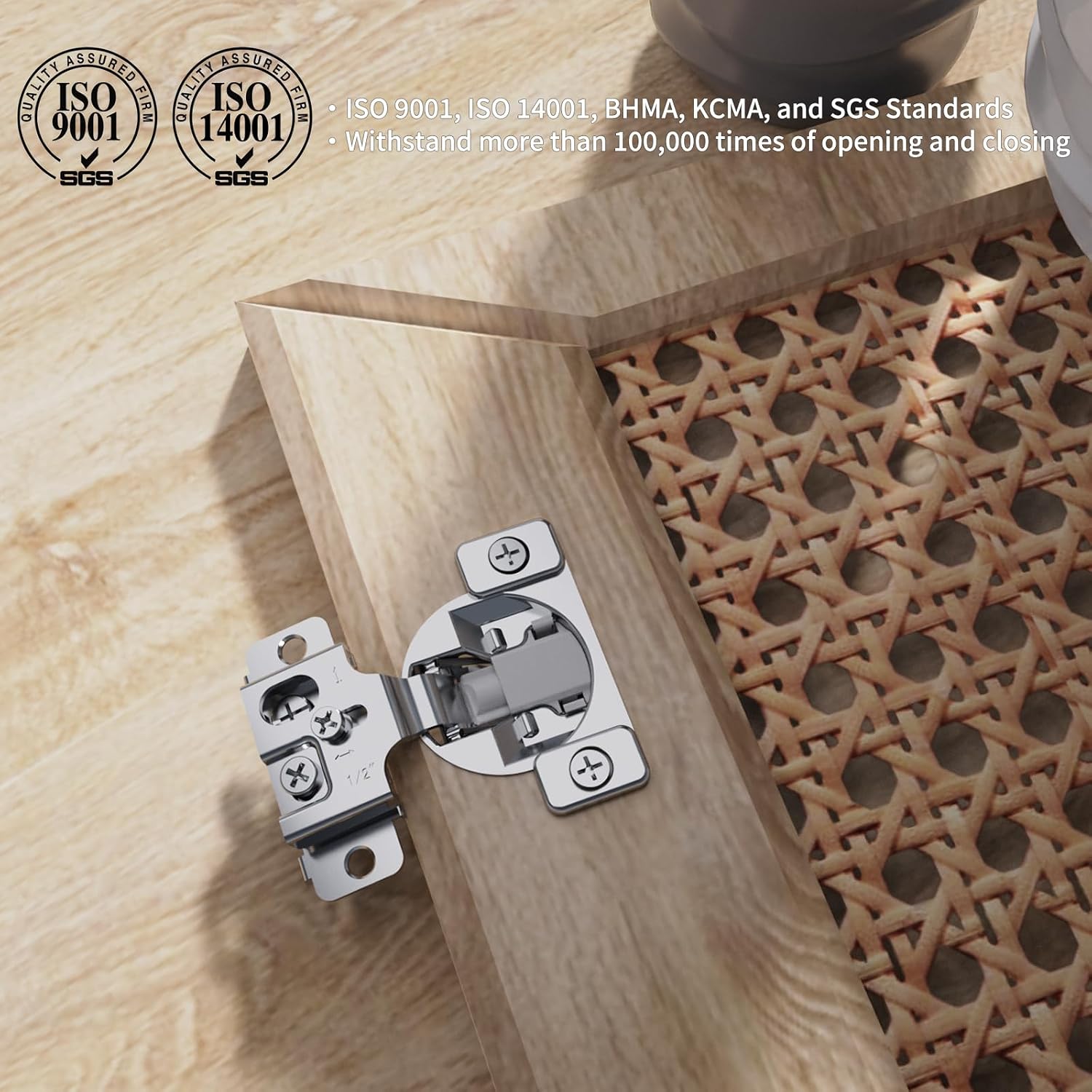

• Buy with Confidence: Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times of opening and closing and more than 48 hours of salt spray test. If you encounter any problems during use, feel welcome to connect with us at any time. We will provide the most attentive service
