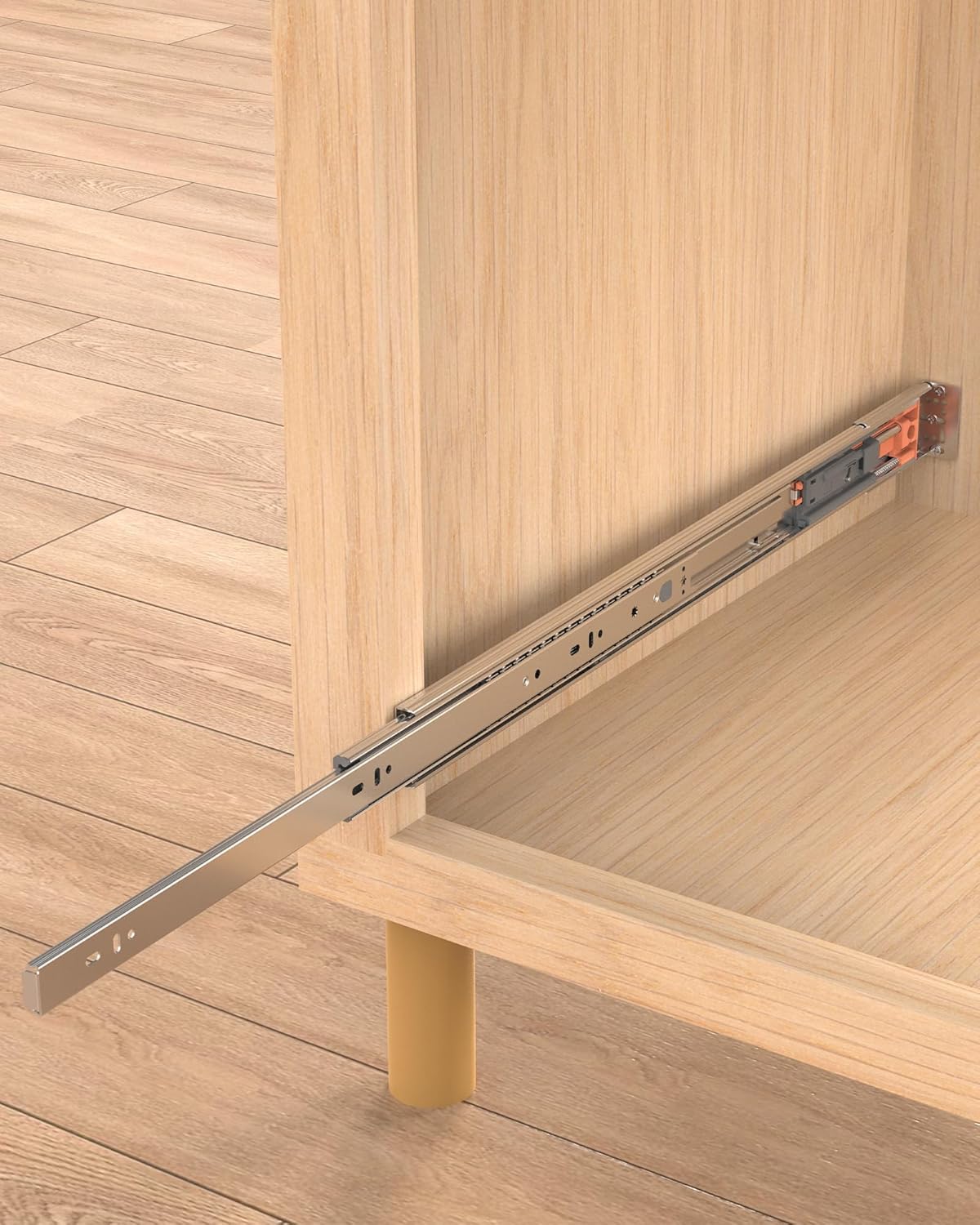

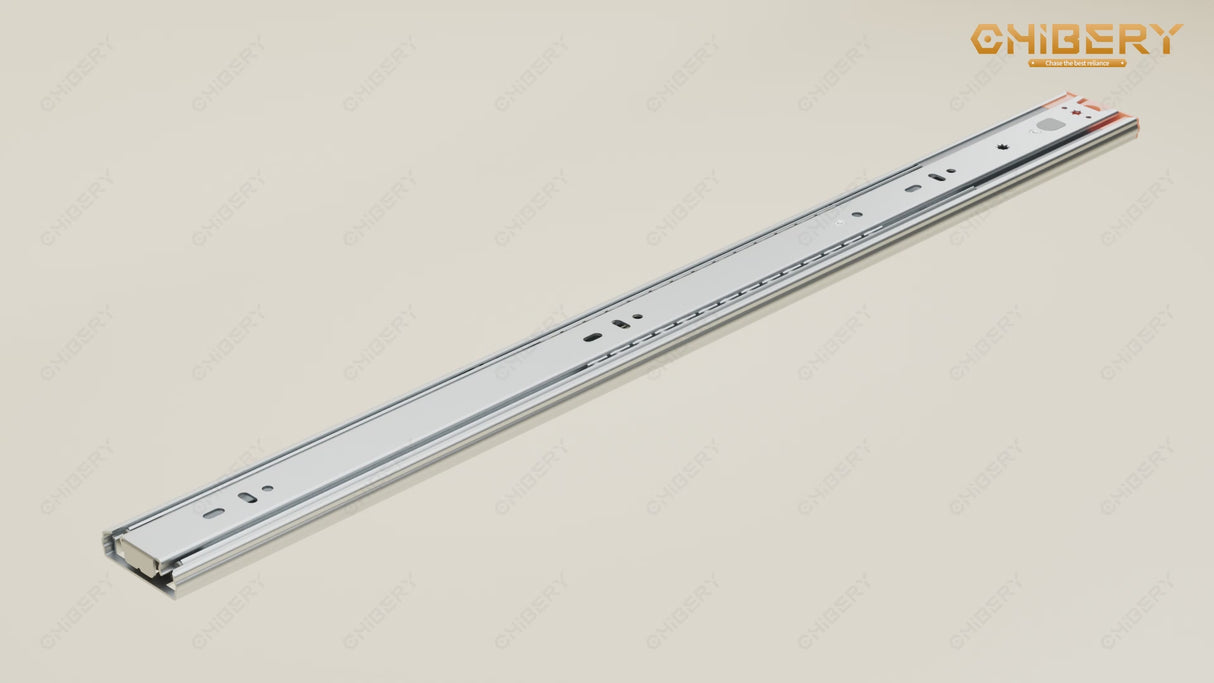

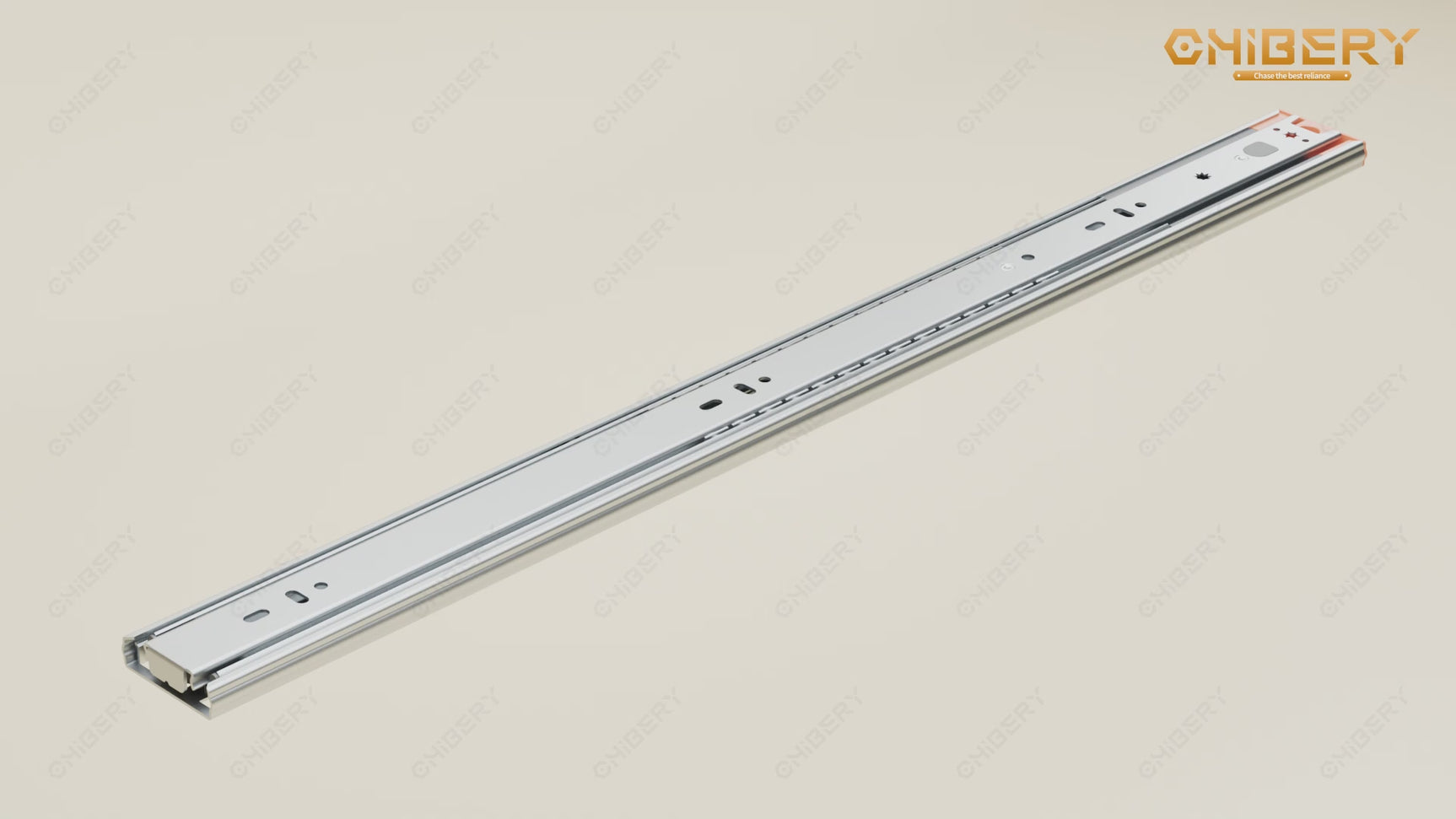

Side Mount Soft Close Drawer Slides

Product Specifications

Upgrade your cabinets and furniture with Chibery side mount soft close drawer slides, designed for smooth, quiet, and reliable everyday drawer operation.

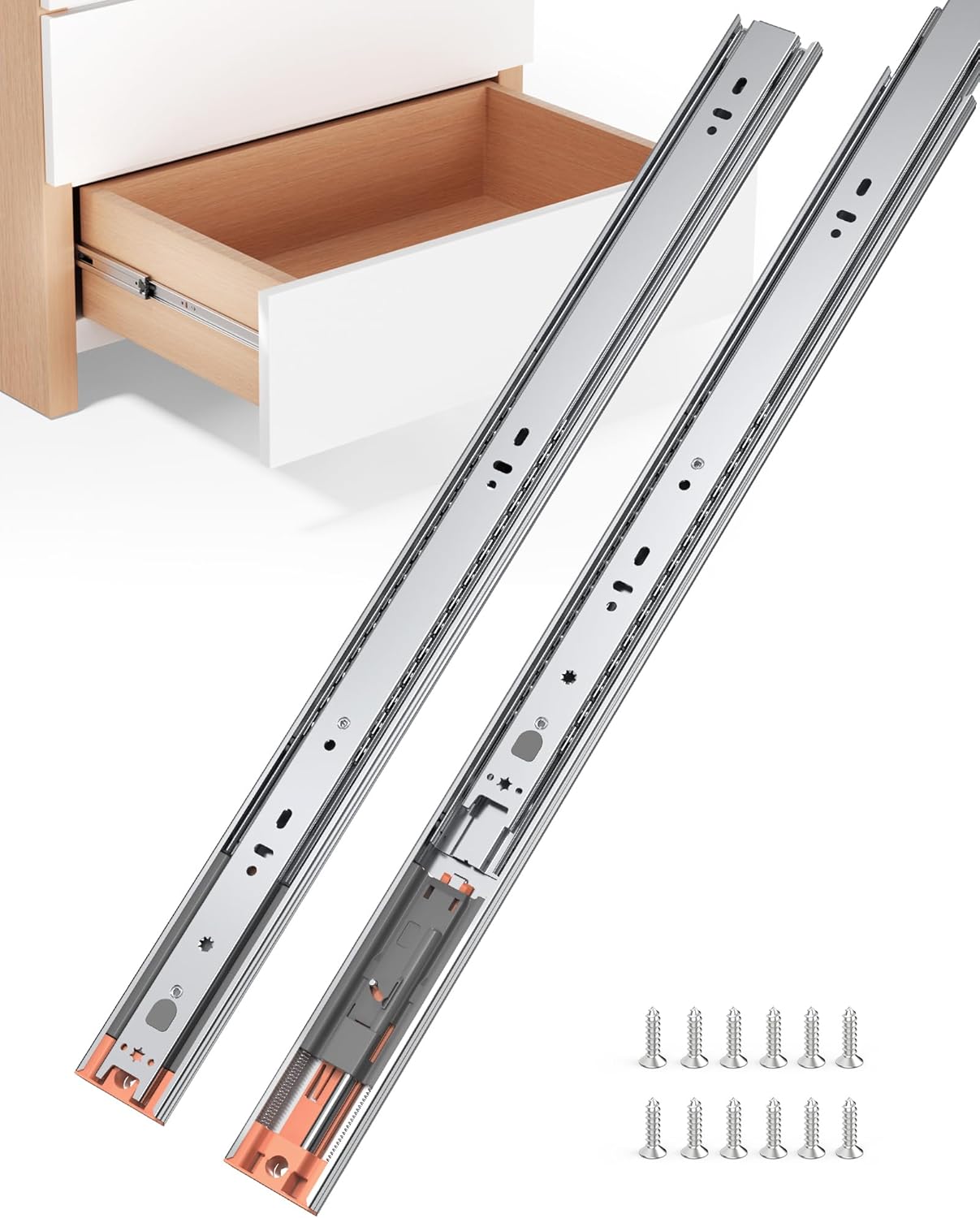

These heavy-duty drawer slides feature a 3-fold full-extension rail system, integrated hydraulic soft close, dual springs, and smooth ball-bearing movement. Constructed from 1.5 mm thick cold-rolled steel with a nickel-plated finish, they support up to 100 lbs when properly installed.

The slides are available in 12", 14", 16", 18", 20", 22", and 24" lengths and are compatible with suitable face frame and frameless cabinets.

For proper installation, allow more than 1/2" (12.7 mm) side clearance on each side. A clearance of approximately 13–13.5 mm per side is recommended for optimal drawer movement.

Key Features

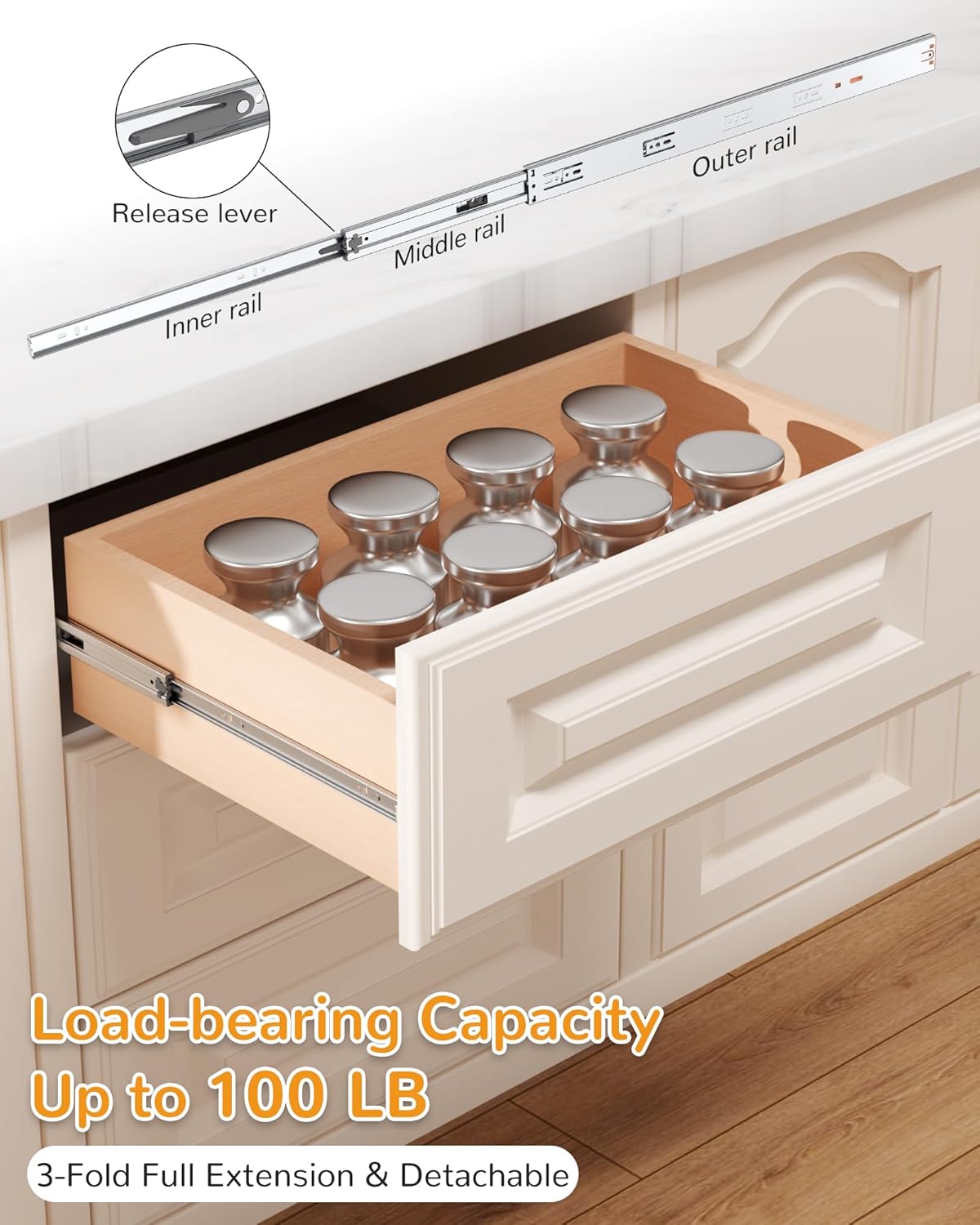

3-Fold Full Extension

The 3-section rail system provides full drawer extension, allowing the drawer to open completely for easier access to items stored at the back.

Full extension is useful for kitchen cabinets, dressers, office furniture, storage drawers, and other applications where maximum drawer access is important.

Heavy-Duty 100 lb Capacity

Made from 1.5 mm thickened cold-rolled steel, these side mount drawer slides are designed for heavier everyday drawer loads.

The reinforced steel construction supports up to 100 lbs when properly installed and used under suitable conditions.

Durable Nickel-Plated Finish

The nickel-plated steel surface is designed to provide resistance to everyday wear and corrosion while maintaining reliable drawer-slide performance.

Smooth Ball-Bearing Operation

Integrated ball bearings help reduce friction and provide smooth, stable drawer movement.

The ball-bearing rail system helps the drawer open and close consistently, including when carrying heavier loads.

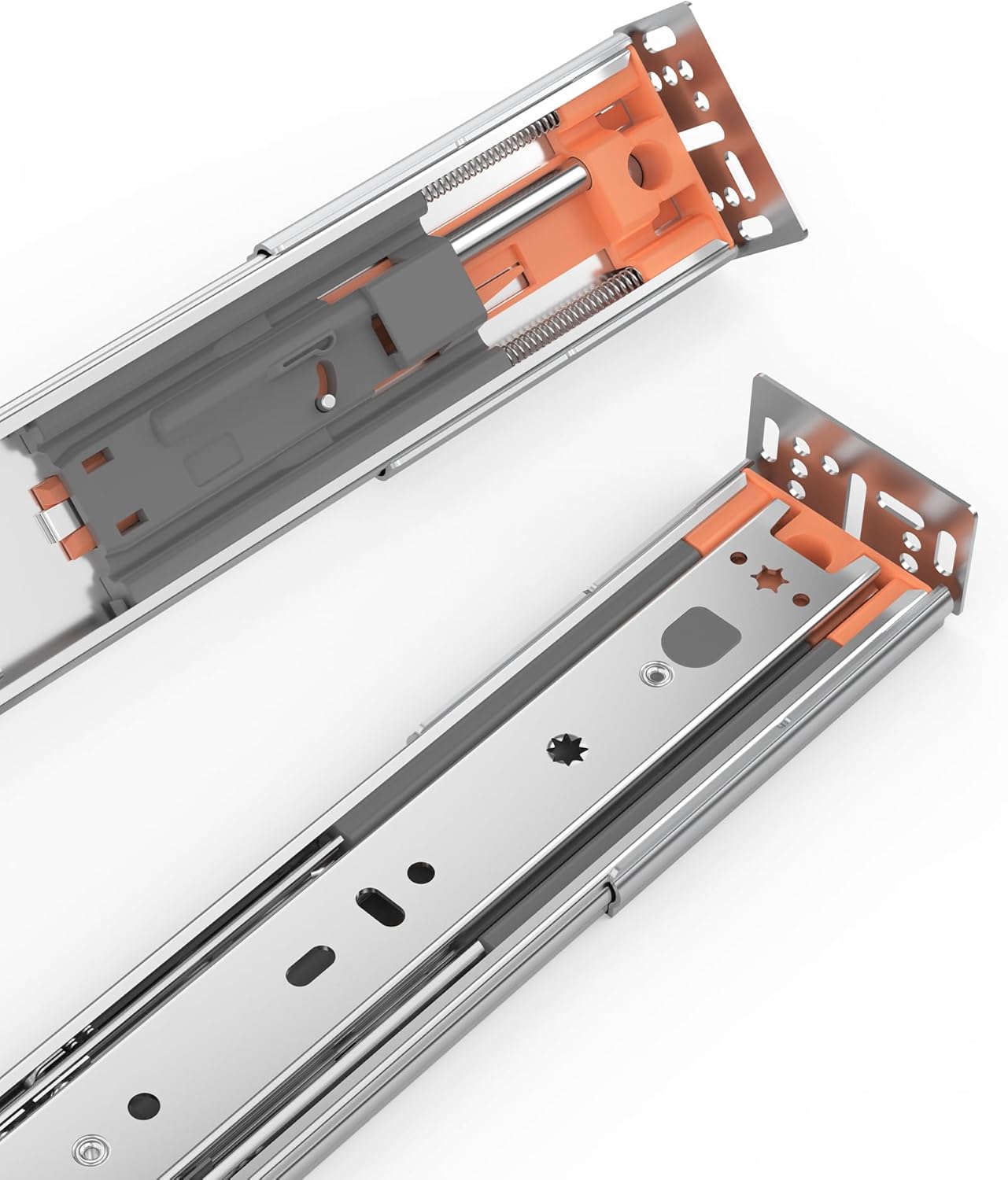

Soft Close with Dual Spring System

The integrated hydraulic damper and dual-spring system help control the drawer during the final stage of closing.

The soft-close mechanism helps reduce slamming and operating noise while providing a smoother and more controlled closing motion.

Proper Side Clearance for Installation

Side-mount drawer slides require sufficient space between the drawer and cabinet opening.

Allow more than:

1/2" (12.7 mm) clearance on each side

For smoother performance, a clearance of approximately:

13–13.5 mm per side

is recommended.

Always measure your existing cabinet and drawer before ordering.

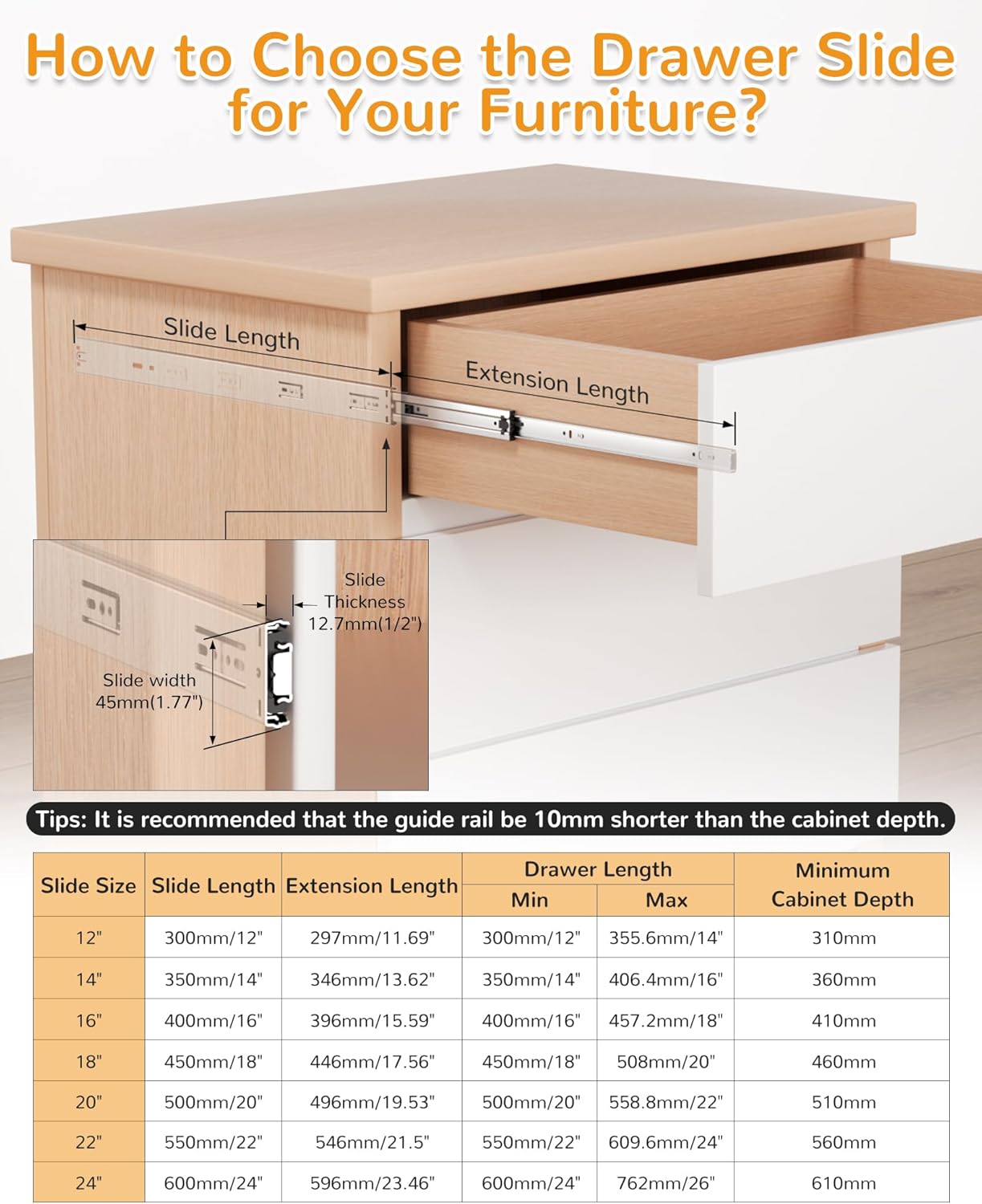

Available Sizes

Choose from:

12" | 14" | 16" | 18" | 20" | 22" | 24"

Select the slide length based on your existing drawer slide, cabinet depth, and drawer dimensions.

Important

The correct drawer slide length should not be selected based only on the outside width or depth of the drawer. Measure your existing slide and cabinet carefully before ordering.

Side Clearance Requirements

Proper side clearance is essential for side mount drawer slides.

A minimum of more than:

1/2" (12.7 mm) on each side

is required.

For optimal performance, approximately:

13–13.5 mm on each side

is recommended.

Insufficient clearance can cause the drawer to bind, rub, or move less smoothly.

Face Frame and Frameless Cabinet Compatibility

These side mount soft close drawer slides can be used with compatible frameless and face frame cabinets.

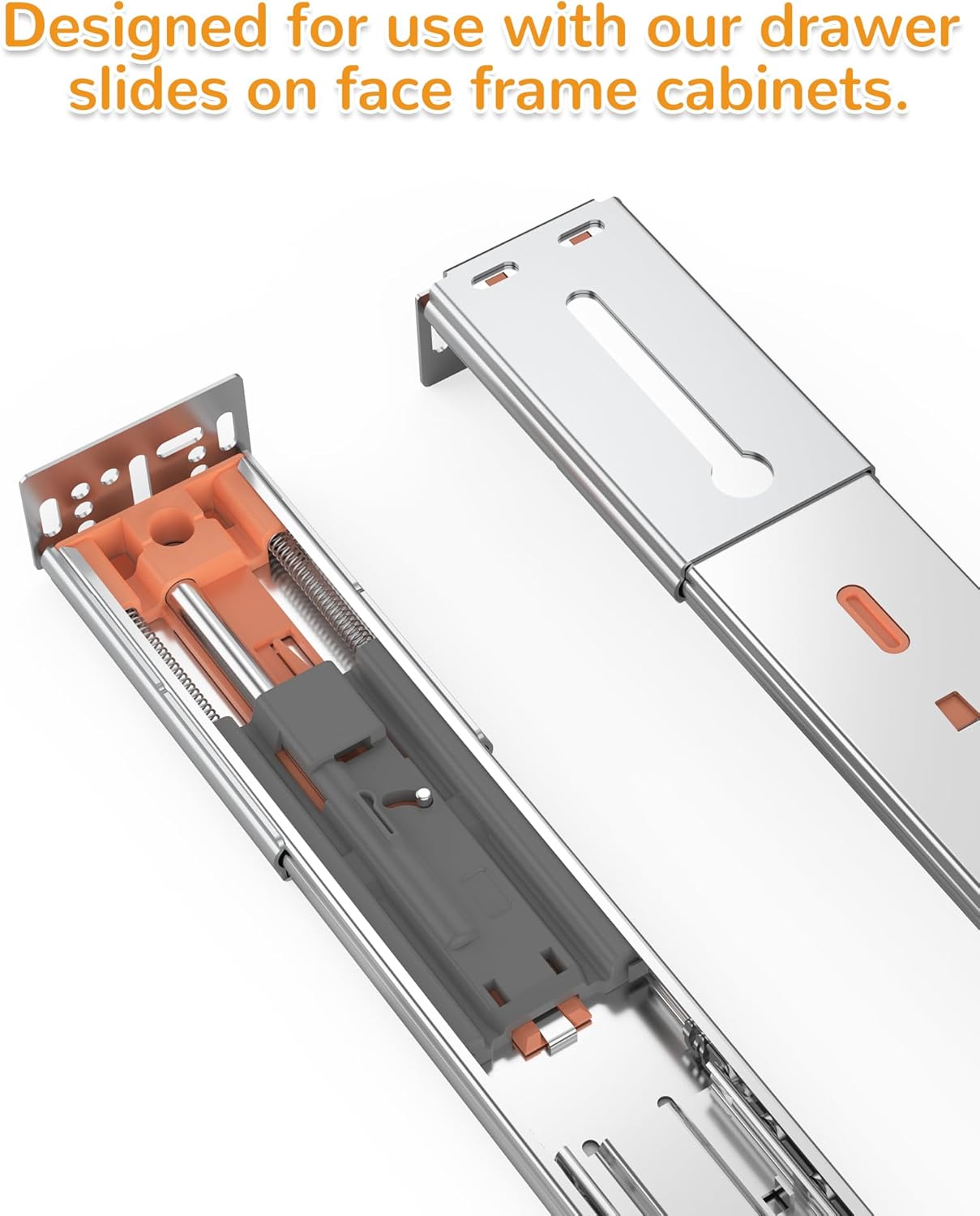

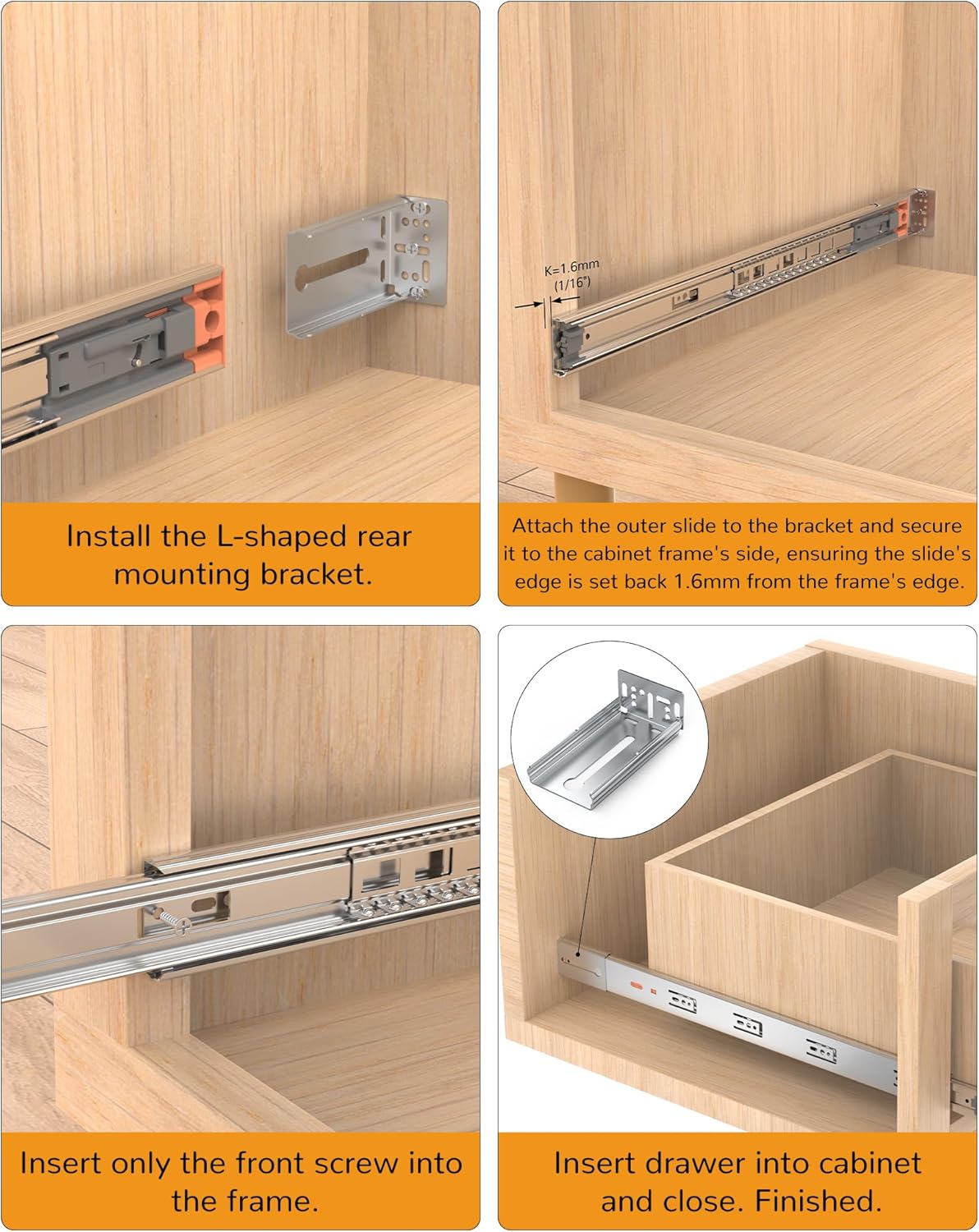

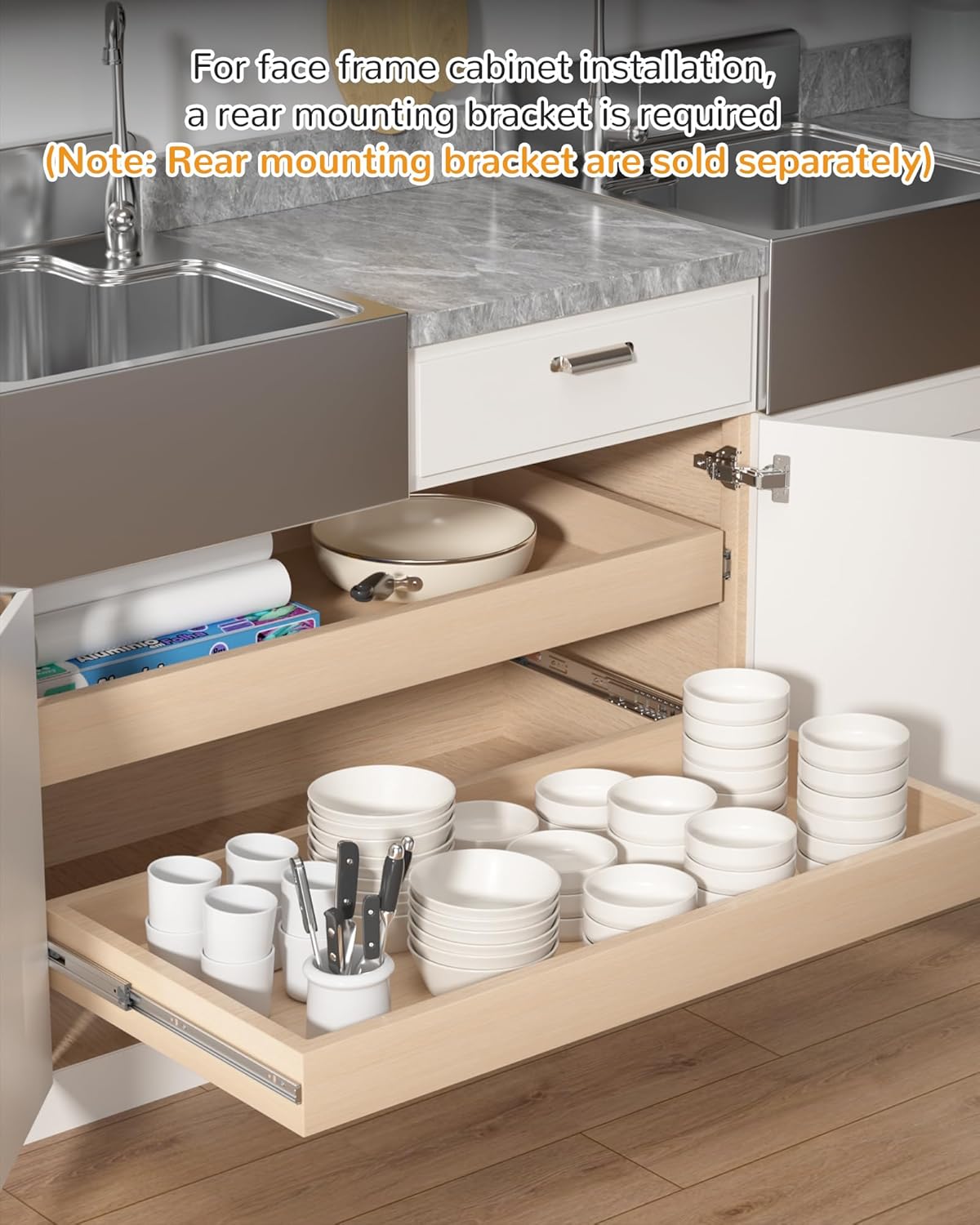

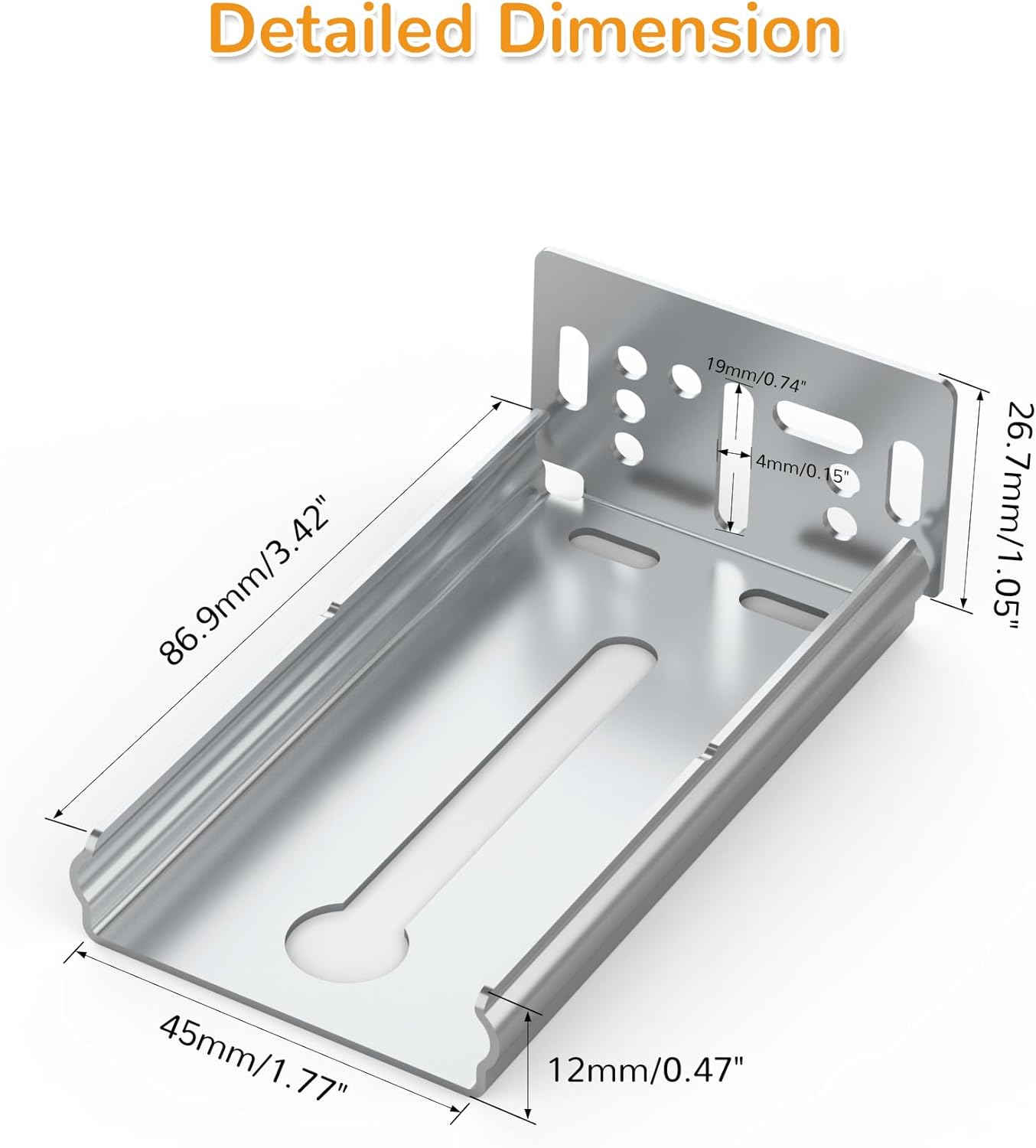

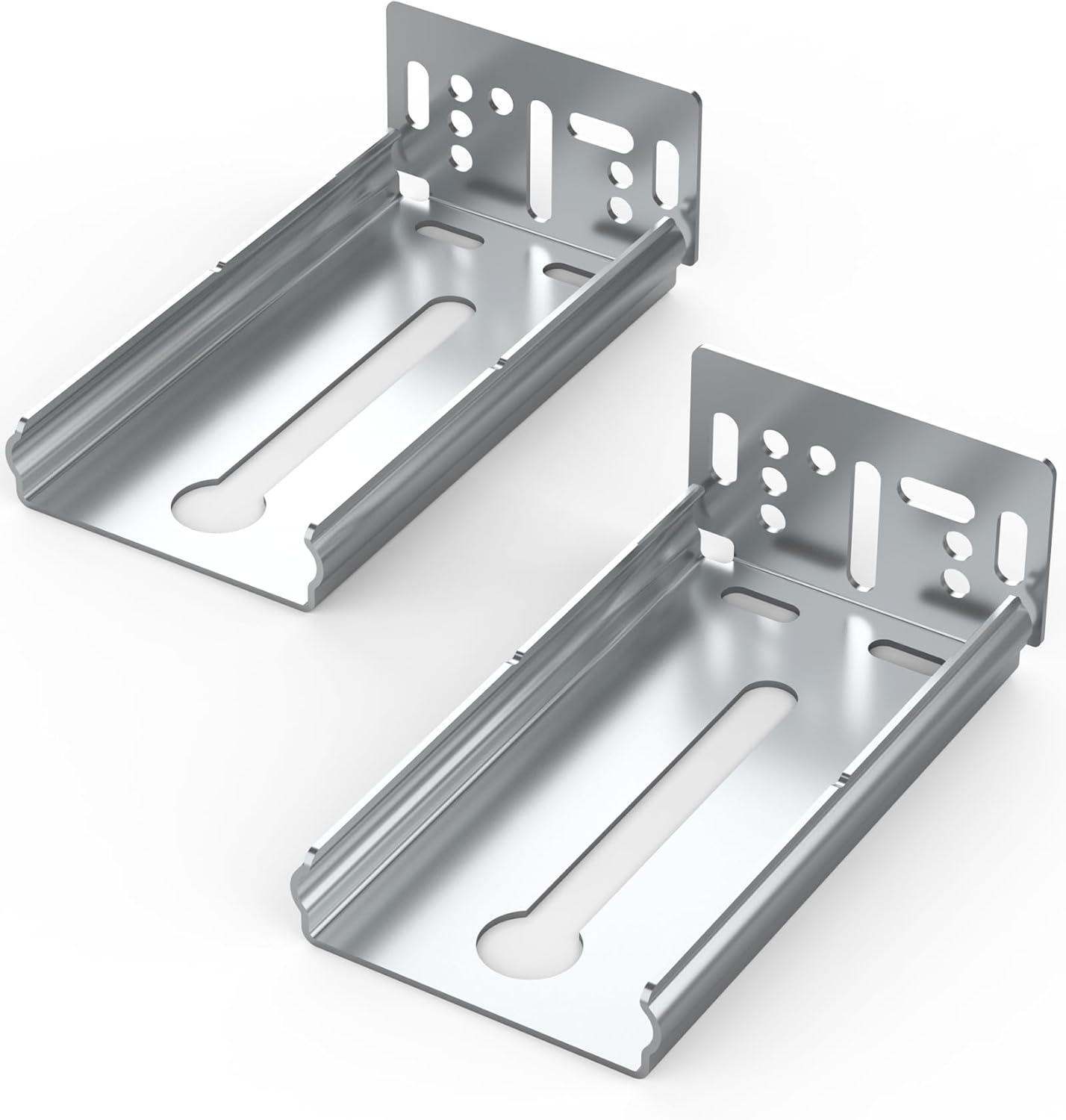

For face frame cabinet installations, rear mounting brackets are required to support the rear of the slide.

Rear mounting brackets are sold separately.

Before ordering, make sure the required brackets and mounting configuration match your cabinet construction.

Compatible Applications

These side mount soft close drawer slides are suitable for compatible:

• Kitchen cabinets
• Bathroom cabinets and vanities
• Bedroom dressers
• Office cabinets
• Storage furniture
• Garage storage systems
• Workshop furniture
• Tool storage drawers
• Cabinet renovation projects
• Drawer replacement projects

Before You Order

Please verify the following:

1. Slide Length
Choose the appropriate length from 12"–24".

2. Cabinet Depth
Make sure there is sufficient cabinet depth for the selected slide.

3. Side Clearance
Allow more than 1/2" (12.7 mm) on each side. Approximately 13–13.5 mm per side is recommended.

4. Cabinet Type
Compatible with face frame and frameless cabinets.

5. Rear Mounting Brackets
Face frame installations require rear mounting brackets, which are sold separately.

6. Load Requirement
The rated load capacity is up to 100 lbs when properly installed and used under suitable conditions.

Durability and Testing

The slides are designed for long-term everyday use and have been tested for more than 80,000 opening and closing cycles according to the product specifications.

Frequently Asked Questions

What are side mount drawer slides?

Side mount drawer slides are installed along both sides of a drawer and cabinet opening. They are commonly used for kitchen cabinets, dressers, office furniture, and storage systems.

Are these soft close drawer slides?

Yes. These slides feature a hydraulic damper and dual-spring system to help slow and quietly close the drawer.

Are these full-extension drawer slides?

Yes. The 3-fold rail system provides full extension, allowing the drawer to open completely.

How much weight can these drawer slides support?

The slides support up to 100 lbs when properly installed and used under suitable conditions.

What side clearance do these drawer slides need?

More than 1/2" (12.7 mm) on each side is required. Approximately 13–13.5 mm per side is recommended for optimal performance.

What sizes are available?

The available lengths are:

12", 14", 16", 18", 20", 22", and 24".

Can these drawer slides be used on face frame cabinets?

Yes. They can be used on compatible face frame cabinets, but rear mounting brackets are required and sold separately.

Can these slides be used on frameless cabinets?

Yes. They can be used with compatible frameless cabinet configurations.

Do these drawer slides use ball bearings?

Yes. The slides use a ball-bearing rail system for smooth and stable movement.

Are these heavy-duty drawer slides?

They are designed with 1.5 mm cold-rolled steel construction and a rated capacity of up to 100 lbs.

How do I choose the correct drawer slide length?

Measure the existing slide and cabinet depth before ordering. Also confirm available side clearance and cabinet construction.

What happens if there is not enough side clearance?

Insufficient clearance can cause the drawer to rub, bind, or operate less smoothly. Confirm the available clearance before installation.

Are rear mounting brackets included?

No. Rear mounting brackets are required for face frame installations but sold separately.

Are these drawer slides suitable for kitchen cabinets?

Yes. They are suitable for compatible kitchen cabinet drawers, bathroom cabinets, dressers, office furniture, storage systems, and other furniture applications.

Need Help Choosing the Right Drawer Slide?

Before ordering, check your existing slide length, cabinet depth, side clearance, cabinet type, and load requirements.

For face frame cabinets, make sure you also have the required rear mounting brackets, which are sold separately.
