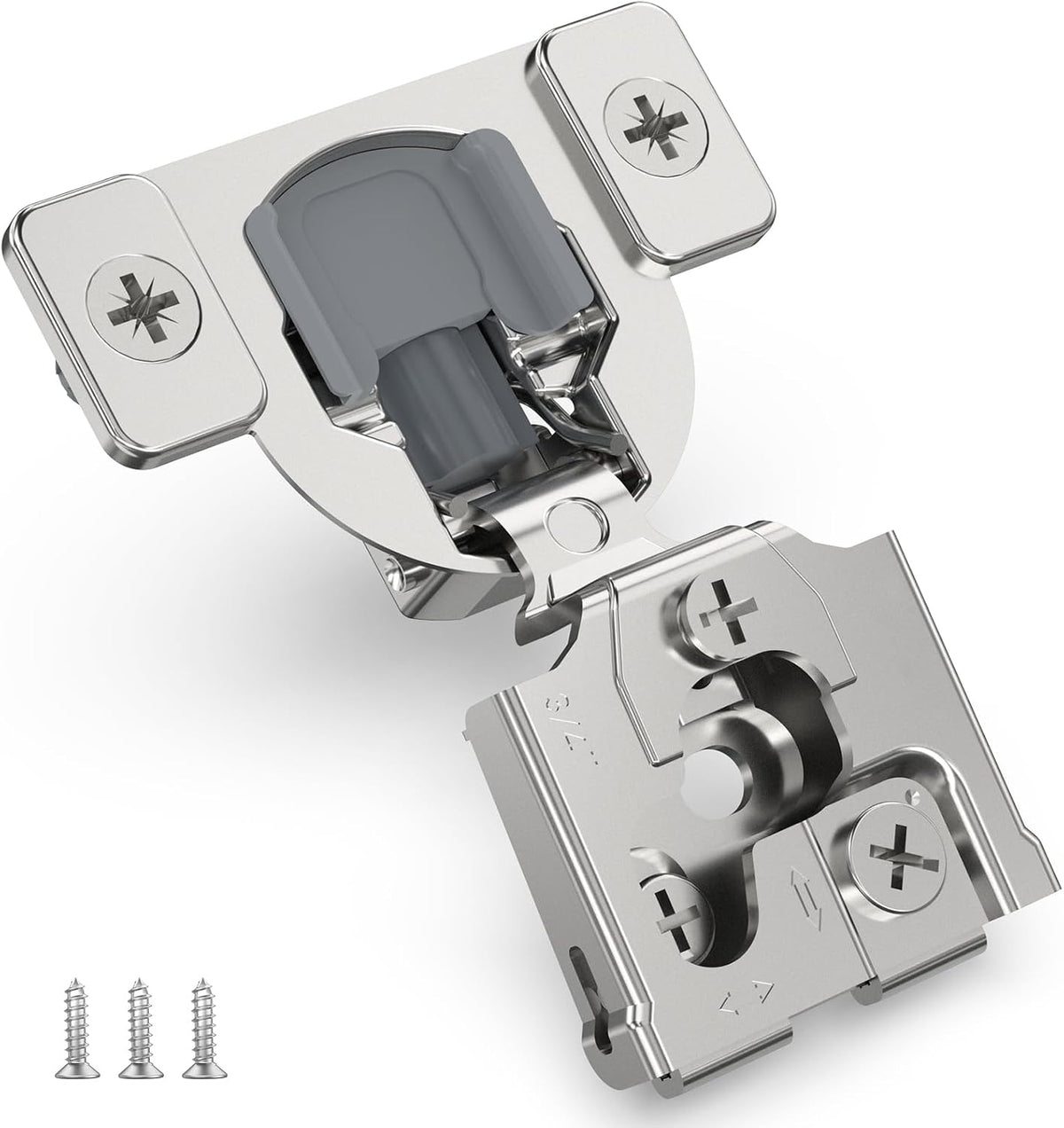

3D Adjustable 105° Opening Smooth Slow Soft Close Cabinet Hinges

Product Specifications

Upgrade your cabinets with Chibery soft close face frame cabinet hinges, designed for compatible face frame cabinet doors requiring concealed hinge installation, smooth soft-close operation, and precise door alignment.

These concealed cabinet hinges feature a built-in POM damper to help control the final stage of door closing and reduce slamming noise. The 3D adjustment system allows you to fine-tune the cabinet door vertically, horizontally, and in depth using a standard screwdriver.

With a 105° opening angle, the hinges provide convenient access to cabinet interiors while maintaining smooth, controlled operation.

Multiple overlay configurations are available, including 1/2", 3/4", 1-1/4", and 1-1/2", making it easier to match different face frame cabinet-door layouts.

Key Features

Designed for Face Frame Cabinets

These face frame cabinet hinges are designed for compatible face frame cabinet doors.

The concealed hinge configuration provides a clean cabinet appearance while allowing the hinge to remain largely hidden when the door is closed.

For replacement projects, compare your existing cabinet construction and hinge configuration before ordering.

Soft Close with POM Damper

The built-in POM damper helps slow the cabinet door during the final stage of closing.

This soft-close mechanism helps reduce hard slamming and operating noise while providing a smoother closing motion for everyday cabinet use.

The soft-close system also begins damping before the door is fully closed, helping reduce abrupt closing movement.

3D Adjustment for Precise Door Alignment

The hinge provides 3D adjustment in three primary directions:

• Vertical adjustment – move the door up or down
• Horizontal adjustment – move the door left or right
• Depth adjustment – move the door inward or outward

These adjustments help fine-tune cabinet-door positioning and correct minor alignment differences after installation.

Adjustment can be performed with a standard screwdriver.

105° Opening Angle

The hinge opens to approximately 105°, providing convenient access to the cabinet interior.

The opening range is suitable for many kitchen and furniture cabinet applications while providing controlled movement during normal use.

Multiple Overlay Options

The hinges are available in four overlay configurations:

1/2" Overlay

3/4" Overlay

1-1/4" Overlay

1-1/2" Overlay

Select the overlay configuration that matches your cabinet-door setup.

Because overlay depends on cabinet construction, door position, face frame dimensions, and hinge placement, measure your existing configuration before ordering.

Standard 35 mm Hinge Cup

The hinge uses a:

35 mm cup diameter

with:

11.5 mm cup depth

and:

45 mm screw-hole spacing

These dimensions are important when replacing an existing concealed cabinet hinge.

K-Value for Installation Accuracy

A 3 mm K-value is recommended for installation.

The K-value refers to the distance between the edge of the hinge cup hole and the edge of the cabinet door.

Using the recommended K-value can help achieve the intended hinge position and overlay when drilling new hinge cup holes.

Durable Electroplated Finish

The hinge is constructed from steel and features a nickel-plated exterior with a brass-plated bottom.

The electroplated finish is designed to improve resistance to everyday wear, corrosion, and tarnishing while maintaining the appearance of the hinge during regular use.

Available Overlay Options

Choose from:

1/2" | 3/4" | 1-1/4" | 1-1/2"

Overlay refers to how much the cabinet door covers the face frame when the door is closed.

The correct overlay depends on your cabinet construction and existing hinge configuration.

For replacement projects, measure your current door overlay before selecting a hinge.

3D Hinge Adjustment

After installation, use a standard screwdriver to fine-tune the door position.

Vertical Adjustment

Move the door upward or downward to improve alignment with adjacent doors.

Horizontal Adjustment

Move the door left or right to improve the spacing between cabinet doors.

Depth Adjustment

Move the door inward or outward to improve its position relative to the face frame.

Make small adjustments and check the door alignment after each change.

Compatible Applications

These soft close face frame cabinet hinges are suitable for compatible:

• Kitchen cabinets
• Bathroom cabinets
• Storage cabinets
• Wardrobes
• TV cabinets
• Bookcases
• Custom cabinetry
• Cabinet renovation projects
• Cabinet hinge replacement projects

Before You Order

Please confirm:

1. Cabinet Type
Designed for compatible face frame cabinets.

2. Overlay
Choose from 1/2", 3/4", 1-1/4", or 1-1/2".

3. Cup Diameter
35 mm.

4. Cup Depth
11.5 mm.

5. Screw-Hole Spacing
45 mm.

6. Door Positioning
A 3 mm K-value is recommended when drilling the hinge cup hole.

7. Existing Hinge Configuration
For replacement projects, compare your existing hinge and measurements before ordering.

Frequently Asked Questions

What are face frame cabinet hinges?

Face frame cabinet hinges are designed for cabinets that have a frame attached to the front of the cabinet box. The hinge configuration is designed to work with the relationship between the cabinet door and the face frame.

Are these soft close face frame cabinet hinges?

Yes. The built-in POM damper helps slow the cabinet door during closing for smoother and quieter operation.

Are these concealed cabinet hinges?

Yes. They use a concealed hinge design with a 35 mm hinge cup.

What is the opening angle?

The hinge opens to approximately 105°.

What does 3D adjustment mean?

3D adjustment allows the cabinet door to be adjusted in three directions: vertical, horizontal, and depth.

What overlay options are available?

The available configurations are:

1/2", 3/4", 1-1/4", and 1-1/2".

What is the difference between 1/2" and 3/4" overlay?

Overlay refers to how much the cabinet door covers the face frame when closed. The required hinge configuration depends on your cabinet construction and the amount of face-frame coverage needed.

What is the hinge cup diameter?

The cup diameter is 35 mm.

What is the cup depth?

The cup depth is 11.5 mm.

What is the screw-hole spacing?

The screw-hole spacing is 45 mm.

What is the K-value?

The K-value is the distance between the edge of the hinge cup hole and the edge of the cabinet door. A 3 mm K-value is recommended for installation.

Can these hinges be adjusted with a screwdriver?

Yes. A standard screwdriver can be used for the 3D adjustment functions.

What hardware is included?

Each hinge is pre-fitted with 2 easy-on dowels and includes 3 self-tapping screws.

Are installation instructions included?

For orders of more than 10 packs, installation instructions and a positioning piece are provided according to the product configuration.

Are these hinges suitable for kitchen cabinets?

Yes. They are designed for compatible face frame kitchen cabinets and other furniture applications.

Can these hinges be used as replacement hinges?

Yes. They can be used as replacement hinges when the cabinet construction, overlay, cup dimensions, and mounting configuration are compatible.

Need Help Choosing the Right Overlay?

Before ordering, measure your existing cabinet-door overlay and compare the hinge cup diameter, cup depth, screw-hole spacing, and cabinet construction with the specifications above.

For replacement projects, matching your existing hinge configuration is recommended to help ensure proper fit.
